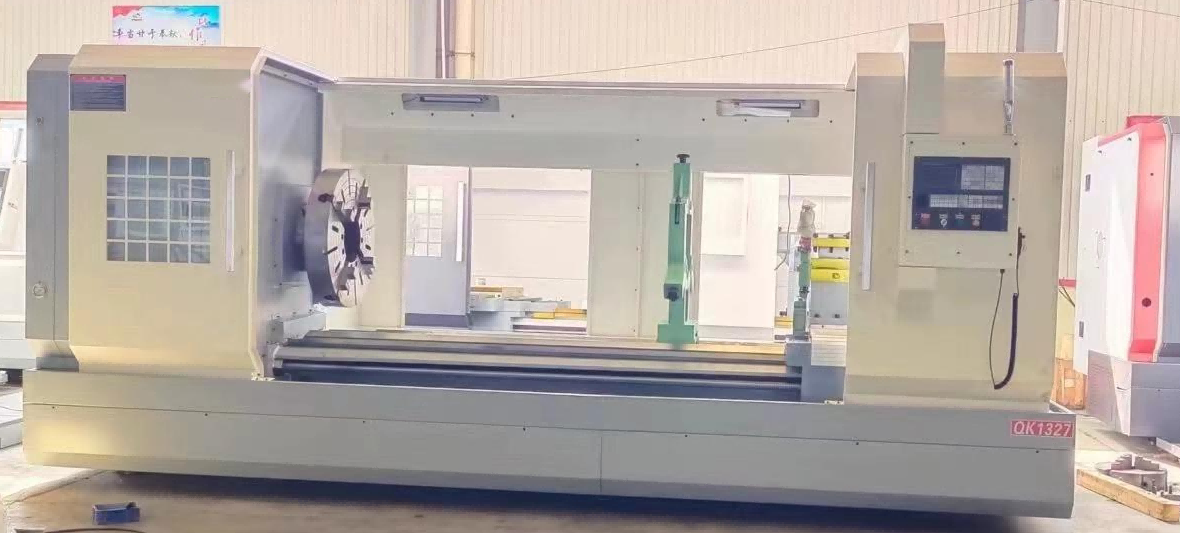

BIG BORE CNC PIPE THREAD LATHE QK1332X3000
$45000
|
Specification |
Unit |
QK1332x3000 |
|
|
Capacity |
Swing over bed |
mm |
1000 |
|
Swing over cross slide |
mm |
610 |
|
|
Distance between centers |
mm |
3000 |
|
|
Pipe threading range |
mm |
Ф190-320 |
|
|
Guideway width |
mm |
600 |
|
|
Max. load capacity |
T |
4 |
|
|
Spindle |
Spindle bore |
mm |
320 |
|
Spindle speed steps |
- |
VF. 3 steps |
|
|
Spindle speed range |
rpm |
20-280 |
|
|
Chuck |
mm |
Ф780 4-jaw chuck x2 |
|
|
Turret |
Turret/Tool post |
mm |
NC turret 4 position |
|
Tool shank size |
mm |
32x32 |
|
|
Feed |
X axis travel |
mm |
520 |
|
Z axis travel |
mm |
3000 |
|
|
X axis rapid traverse |
mm/min |
6000 |
|
|
Z axis rapid traverse |
mm/min |
6000 |
|
|
Tailstock |
Tailstock quill diameter |
mm |
Ф160 |
|
Tailstock quill taper |
- |
MT6 |
|
|
Tailstock quill travel |
mm |
300 |
|
|
Motor |
Main spindle motor |
Kw |
15 |
|
Coolant pump motor |
Kw |
0.25 |
|
|
Dimension (LxWxH) |
mm |
7500x2080x2080 |
|
|
Net weight |
T |
10 |
|
