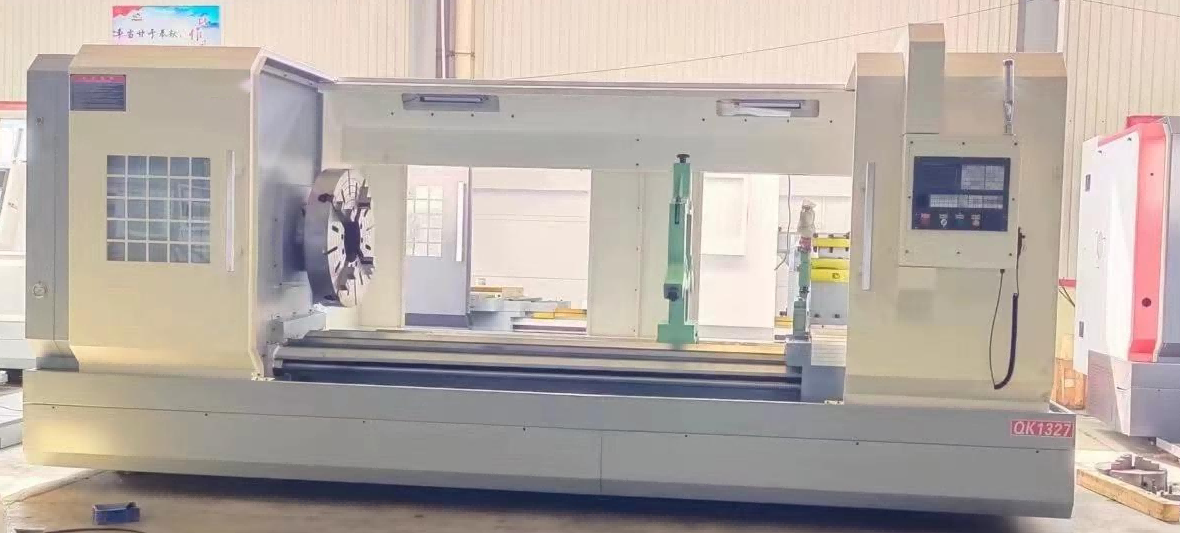

CNC Pipe threading lathe with Fanuc QK1327X3000
$37000
|
Specification |
Unit |
QK1327X3000 |
|
|
Capacity |
Swing over bed |
mm |
800 |
|
|
Swing over cross slide |
mm |
480 |
|
|
Distance between centers |
mm |
3000 |
|
|
Pipe threading range |
mm |
Ф50-270 |
|
|
Guideway width |
mm |
600 |
|
|
Max. load capacity |
T |
4 |
|
|
Spindle bore |
mm |
280 |
|
Spindle |
Spindle speed steps |
- |
VF. 4 steps |
|
|
Spindle speed range |
rpm |
20-420 |
|
|
Chuck |
mm |
Ф680 4-jaw chuck x2 |
|
Turret |
Turret/Tool post |
mm |
NC turret 4 position |
|
|
Tool shank size |
mm |
40x40 |
|
Feed |
X axis travel |
mm |
420 |
|
|
Z axis travel |
mm |
3000 |
|
|
X axis feed grade/range |
mm/r |
32/0.0475-0.72 |
|
|
Z axis feed grade/range |
mm/r |
32/0.095-1.44 |
|
|
X axis rapid traverse |
mm/min |
4000 |
|
|
Z axis rapid traverse |
mm/min |
6000 |
|
|
Tailstock quill diameter |
mm |
Ф120 |
|
Tailstock |
Tailstock quill taper |
- |
MT6 |
|
|
Tailstock quill travel |
mm |
250 |
|
Motor |
Main spindle motor |
Kw |
15 |
|
|
Coolant pump motor |
Kw |
0.25 |
|
Dimension (LxWxH) |
mm |
6600x1930x1900 |
|
|
Net weight |
T |
8.5 |
|
