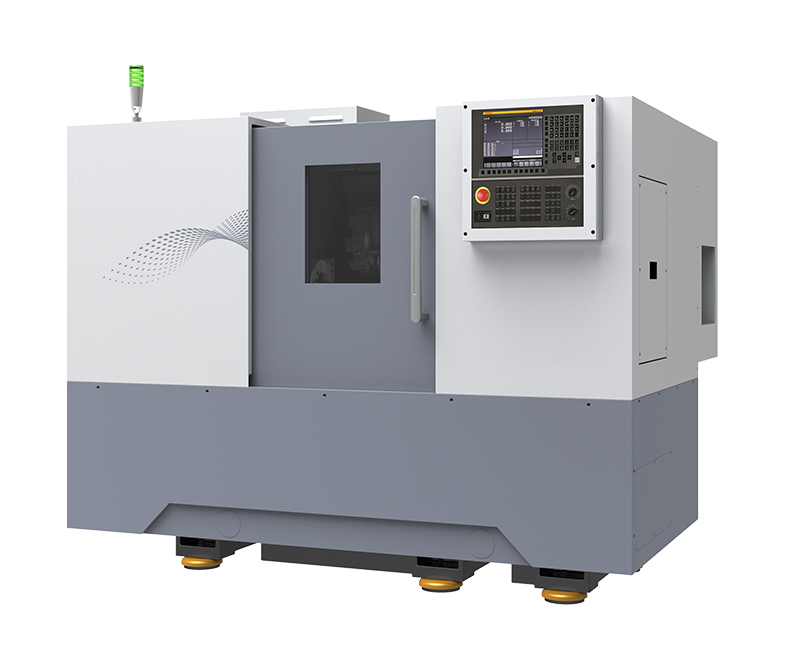

CNC SLANT BED LATHE WITH FANUC 10’ CHUCK TK50
$25000
|
Item |
Unit |
TK50 |
Remarks |
|
Max Turning Diameter on Bed |
mm |
500 |
|
|
Max Cutting Length |
mm |
500 |
|
|
Max Cutting Diameter |
mm |
360 |
Horizontal 12-station turret |
|
Standard Cutting Diameter |
mm |
240 |
|
|
Max Turning Diameter on Slide |
mm |
300 |
|
|
Spindle Type and Code |
|
A2-8 |
Integrated spindle unit |
|
Spindle Hole Diameter |
mm |
85 |
|
|
Max Bar Through Diameter |
mm |
75 |
|
|
Spindle Speed Range |
r/min |
50-4000 |
|
|
Max Spindle Output Torque |
Nm |
177 |
ZJY265A-11AM-B5 |
|
|
|
177 |
CTB-4011ZGC10 |
|
|
|
235 |
βiIP22/6000 |
|
Spindle Speed Stage |
|
Continuously variable |
|
|
Main Motor Output Power |
kW |
15 (30 min)/11 (rated) |
ZJY265A-11AM-B5 |
|
|
|
15 (30 min)/11 (rated) |
CTB-4011ZGC10 |
|
|
|
15 (15 min)/11 (rated) |
βiIP22/6000 |
|
Chuck Diameter/Type |
mm |
8 Hollow |
|
|
X-Axis Rapid Traverse Speed |
m/min |
30 |
|
|
Z-Axis Rapid Traverse Speed |
m/min |
30 |
|
|
X-Axis Travel |
mm |
200 |
|
|
Z-Axis Travel |
mm |
550 |
|
|
Tailstock Travel |
mm |
450 |
|
|
Tailstock Sleeve Travel |
mm |
100 |
|
|
Tailstock Sleeve Taper |
Morse |
5 |
|
|
Standard Tool Holder Type |
|
Horizontal 12-station turret |
|
|
Tool Size |
External |
mm |
25×25 |
|
|
Boring |
mm |
Ф40/Ф32/Ф25/Ф20 |
|
Tool Turret Selection |
|
Available |
|
|
Max Weight for Disc Parts |
kg |
200 (including chuck and accessories) |
|
|
Max Weight for Shaft Parts |
kg |
500 (including chuck and accessories) |
|
|
Machine Weight |
kg |
3600 |
|
|
Machine Dimensions (L×W×H) |
mm |
2300×1700×1930 |
