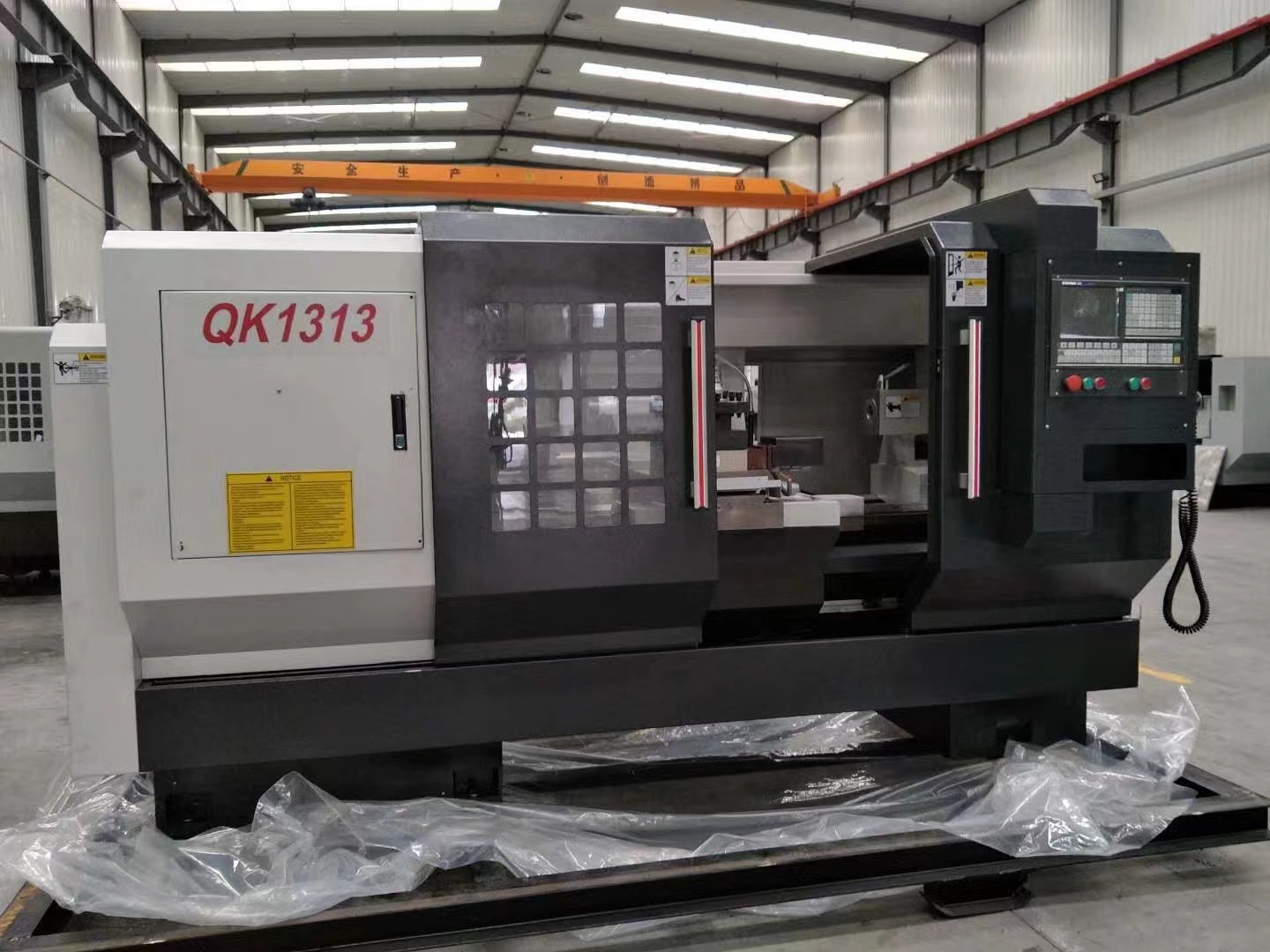

CNC Pipe threading lathe with FANUC 0i TF QK1313X1500
$27800
|
Item |
Unit |
QK-1313 |
|
|
Control System |
|
FANUC 0i TF |
|
|
Max dia.swing over bed |
mm |
630 |
|
|
Max dia.swing over cross slide |
mm |
330 |
|
|
Max.length of work-piece |
mm |
1500 |
|
|
Pipe threading range |
mm |
Φ30-126 |
|
|
Width of bed |
mm |
550 |
|
|
Spindle bore |
mm |
135 |
|
|
Spindle center height |
mm |
300 |
|
|
Power of spindle motor |
KW |
11 |
|
|
Mode of spindle speed |
|
Two gears, smooth adjustment |
|
|
Range of spindle speed |
r/min |
L:15-130 H:130-800 |
|
|
Max.traverse of X/Z |
mm |
X:350 Z:1250 |
|
|
X/Z rapid traverse |
mm/min |
4000/6000 |
|
|
X-axis motor |
Speed |
r/min |
2000 |
|
|
Torgue |
N.m |
12 |
|
|
Power |
Kw |
1.2 |
|
Z-axis motor |
Speed |
r/min |
2000 |
|
|
Torgue |
N.m |
22 |
|
|
Power |
Kw |
2.0 |
|
Tailstock quill |
Diameter |
mm |
100 |
|
|
Travel |
mm |
250 |
|
|
Taper |
|
Morse NO.5 |
|
Turret |
Model |
|
AK21240 |
|
|
Tool post type |
|
4-station |
|
|
Section of tool shank |
mm |
32×32 |
|
Chuck |
|
3 jaw chuck (Ф380 front Ф380 rear) |
|
|
Positioning accuracy |
mm |
0.02 |
|
|
Repositioning accuracy |
mm |
0.01 |
|
|
Overall dimensions(L*W*H) |
mm |
3800×1900×1900 |
|
|
Machine weight |
T |
5.2 |
|
