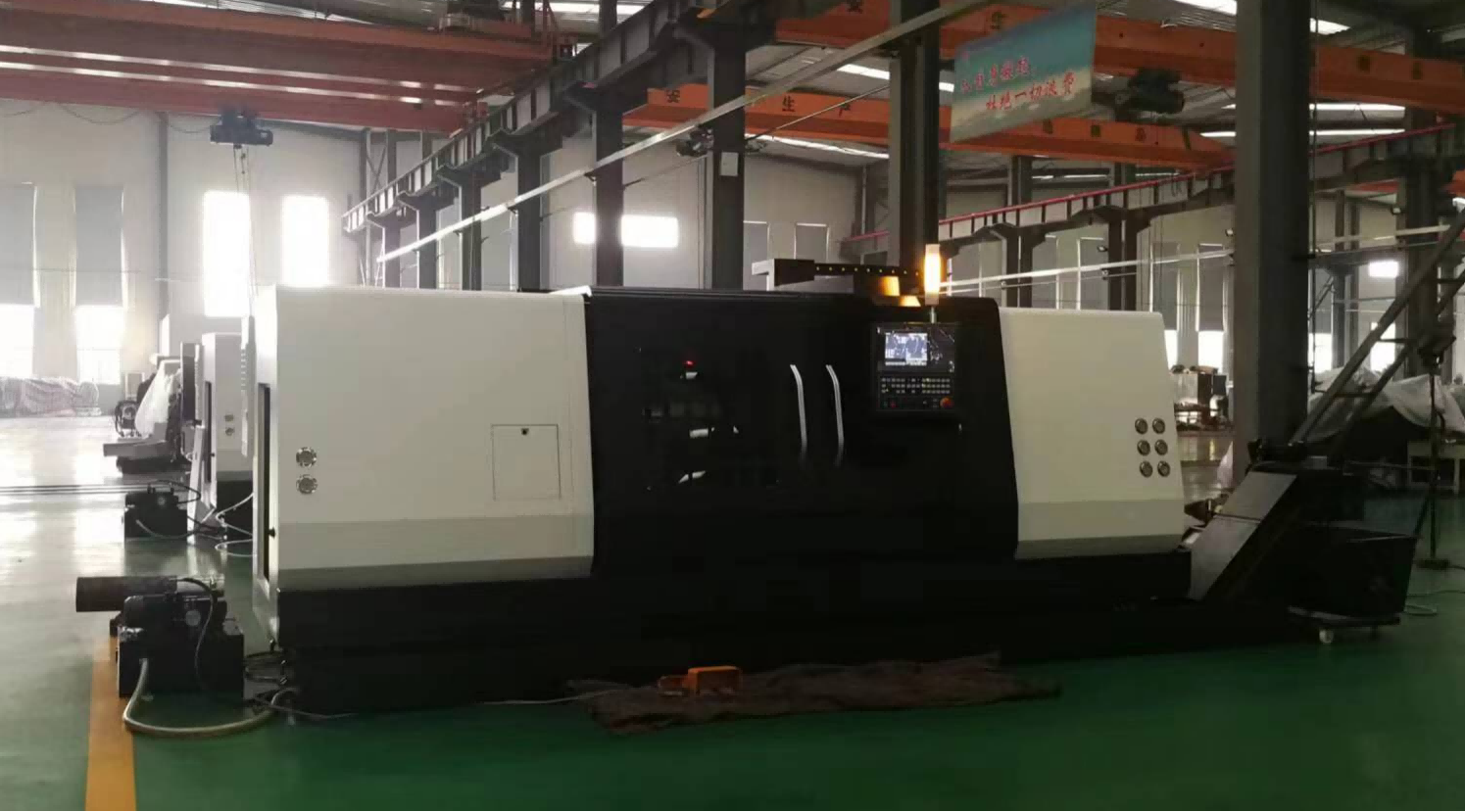

45 Degree Slant bed CNC D45X1500
$108800
|
Item |
Unit |
Specification |
|||
|
Capacity |
Swing over bed |
mm |
Φ800 |
||
|
|
Swing over cross slide |
mm |
Φ630 |
||
|
|
Distance between centers |
mm |
1500 |
||
|
|
Max turning length |
Shat |
mm |
Φ600 |
|
|
|
|
Disc |
mm |
Φ700 |
|
|
Spindle |
Spindle through hole |
mm |
Φ205 |
||
|
|
Spindle bore |
|
Metric 208 |
||
|
|
Spindel nose |
|
A2-15 |
||
|
|
Front bearing dia. |
|
280 |
||
|
|
Spindle speed |
r/min |
20～550 |
||
|
|
Max. output torque |
N.m |
1203 |
||
|
|
Main motor power |
kW |
30/37 |
||
|
Chuck |
Chuck size |
Inch |
18/21/24 |
||
|
|
Unit jaw travel |
mm |
20+7 |
||
|
|
Working pressure |
Mpa |
0.3-1 |
||
|
|
Chuck through hole |
mm |
φ203 |
||
|
Tailstock |
Tailstock quill diameter |
mm |
Φ170 |
||
|
|
Tailstock quill travel |
mm |
150 |
||
|
|
Tailstock quill taper |
|
MT6 |
||
|
Feed |
Feed motor (X/Z) |
Nm |
20/27 |
||
|
|
Rapid feed speed(X/Z) |
m/min |
X∶10/ Z∶10 |
||
|
|
Max travel（X/Z） |
mm |
375/1550 |
||
|
Turret |
Tool turret capacity |
|
8 |
||
|
|
Tool shank size |
Out diameter tool |
mm |
32×32 |
|
|
|
|
Inner diameter tool |
mm |
Φ50 |
|
|
Accuracy |
Precision |
|
IT6 |
||
|
|
Surface roughness of workpiece |
μm |
Ra 1.6 |
||
|
|
Roundness of workpiece |
mm |
0.005/Φ150 |
||
|
|
Cylindricity of workpiece |
mm |
0.025/Φ120x300 |
||
|
|
Flatness of workpiece |
mm |
0.020/Φ300 |
||
|
|
Min. Setting unit(X/Z) |
mm |
0.001 |
||
|
|
Repeatability(X/Z) |
mm |
X∶0.007 Z∶0.015 |
||
|
|
Positioning accuracy (X/Z) |
mm |
X∶0.010 Z∶0.025 |
||
|
Weight and size |
Net weight |
kg |
15000 |
||
|
|
Size (not include chip conveyor) |
mm |
5800×2400×2500 |
||
