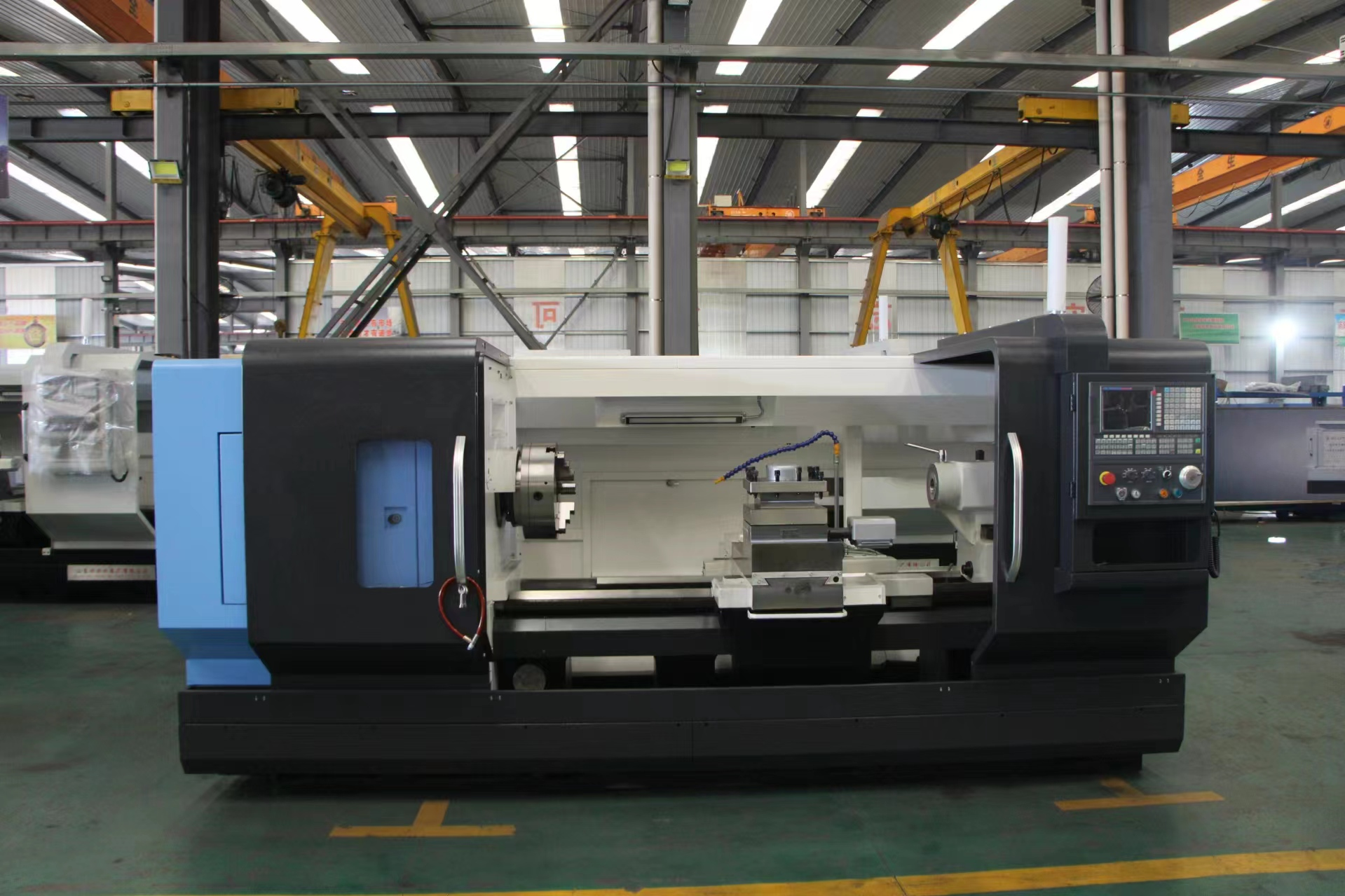

CNC Lathe with FANUC 0i MF（5）CK6163X1500
$26000
|
Item |
Unit |
Specification |
|
|
Capacity |
Swing over bed |
mm |
Φ630 |
|
|
Swing over cross slide |
mm |
Φ340 |
|
|
Max turning diameter |
mm |
Φ630 |
|
|
Max turning length |
mm |
1250 |
|
|
Max. Workpiece length(between center） |
mm |
1000 |
|
|
Max. Support weight |
T |
3 |
|
|
Guideway width |
mm |
550 |
|
Spindle |
Spindle nose type |
|
D11 |
|
|
Spindle through hole |
mm |
Φ130 |
|
|
Spindle bore |
mm |
Φ140/Metric |
|
|
Bearing |
mm |
NN4938K、16034、NN4932K、234938 |
|
|
Spindle speed steps |
|
VF. 3 steps |
|
|
Spindle speed range |
r/min |
20-150、80-350、200-800 |
|
|
3 jaw chuck |
mm |
24 inch |
|
|
Main motor power |
kW |
11 |
|
Tailstock |
Tailstock quill diameter |
mm |
Φ100 |
|
|
Tailstock quill travel |
mm |
250 |
|
|
Tailstock taper |
|
MT5 |
|
|
Lon |
mm |
±15 |
|
Feed
|
Feed motro (X/Z) |
N·m |
10/15 |
|
|
Rapid traverse(X/Z) |
m/min |
4/6 |
|
|
Max. travel（X/Z） |
mm |
320/1000 |
|
|
Minimum setting unit |
|
0.001mm |
|
Turret |
Turret |
|
NC turret 4 postion |
|
|
Tools of turret |
|
4 |
|
|
Tool shank size |
mm |
32×32 |
|
Lubrication |
Lubrication way |
|
Automatic |
|
|
Lubrication pump capacity |
L |
2 |
|
Coolant |
Coolant head |
m |
3.3 |
|
|
Coolant flow |
L/min |
22 |
|
|
Water tank capacity |
L |
70 |
|
|
Coolant pump power |
W |
125 |
|
Accuracy |
Precision |
|
IT7 |
|
|
Surface roughness |
μm |
Ra 1.6 |
|
|
Processing workpiece roundness |
mm |
≤0.005 |
|
|
Processing workpiece flatness |
mm /mm |
0.025/φ300 |
|
|
Repeat Positioning Accuracy(X/Z) |
mm |
X:0.009/Z:0.014 |
|
|
Positioning accuracy(X/Z) |
mm |
X:0.03/Z:0.04 |
|
Weight and size |
Net weight |
kg |
3500 |
|
|
Size (LxWxH) |
mm |
3300×1750×1850 |
