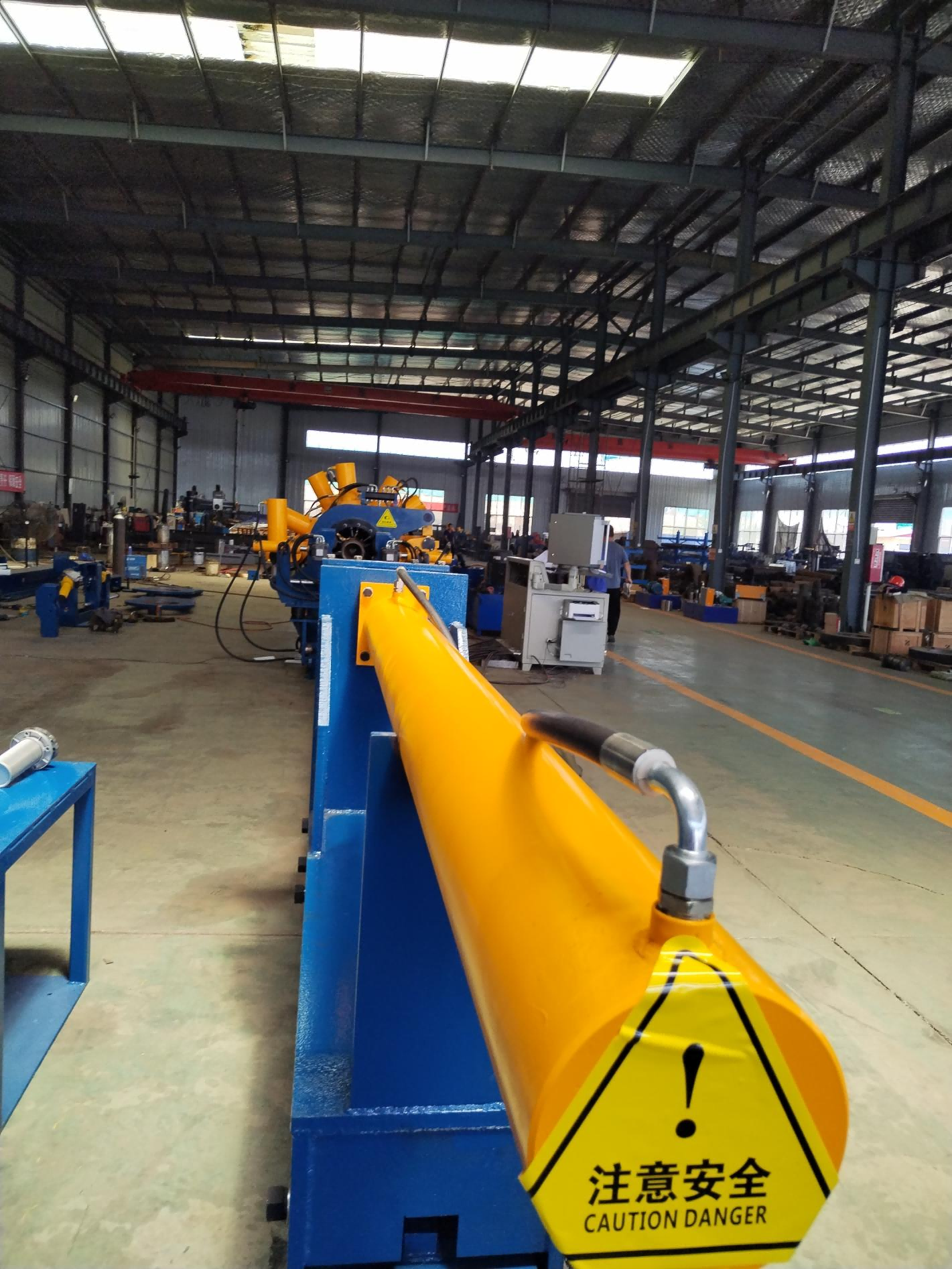

18’35° Bucking Machine
$63000
|
Description |
Technical Specification |
Qty |
Unit |
||
|
Hydraulic power system ( Oil tankcapacity 600 L)
|
Motor: power is 22KW, speed is 1,460rpm, required voltage is 380V, frequency is 50HZ |
1 |
Set |
||
|
|
Hydraulic pump type: vane pump |
|
|
||
|
|
working pressure: 2,900PSi |
|
|
||
|
|
MAX. working pressure: 4,350PSi |
|
|
||
|
|
Hydraulic operation console dimension 51″*30″*37″ |
|
|
||
|
|
Oil level reminder function |
|
|
||
|
|
Hydraulic oil cooling-2 air-cooled radiators/automatic temperature control |
|
|
||
|
Make up/ break out main engine
|
Headstock
|
Applicable pipe range：2-3/4″～18″ |
1 |
Set |
|
|
|
|
Six clamping cylinders, synchronization accuracy 98% |
|
|
|
|
|
|
Hinged closure structure, can be opened 90° |
|
|
|
|
|
|
Single oil cylinder clamping pressure: 400kn at 20Mpa |
|
|
|
|
|
|
Fixed, not movable |
|
|
|
|
|
Tailstock
|
Applicable pipe range：2-3/4″～18″ |
1 |
Set |
|
|
|
|
Six clamping cylinders, synchronization accuracy 98% |
|
|
|
|
|
|
Mini. Cylinder clamping pressure 290Psi |
|
|
|
|
|
|
Single stroke angle 35° |
|
|
|
|
|
|
Max. Make up torque 160,000 ft.lb |
|
|
|
|
|
|
Max. Break out torque 199,000 ft.lb |
|
|
|
|
|
|
Mini. Torque 2000 ft.lb |
|
|
|
|
|
|
Torque accuracy ±0.2% |
|
|
|
|
|
|
Torque and clamping force are equal pressure |
|
|
|
|
|
|
Follow-up roller jack
|
1.QTY 12.Move with Tailstock 3.Support 6,800LBS 4.Hydraulic control lifting |
|
|
|
|
Carriageway |
Base Length 19.69′ |
1 |
Set |
|
|
|
|
Headstock and Tailstock span 13.1′ |
|
|
|
|
|
Spinner
|
Structure - Top opening |
1 |
Set |
|
|
|
|
Suspension spring structure, adaptive bending parts |
|
|
|
|
|
|
Torque：1,100～4,000 ft.lb |
|
|
|
|
|
|
Max. speed 100 Rpm |
|
|
|
|
|
|
Scope of application：3-1/6″～18″ |
|
|
|
|
Left end support device
|
Carriageway
|
Base Length 19.69′ |
1
|
Set
|
|
|
|
Roller jack
|
1.Quantity: 2, 2. Support 6,800LBS 3.Hydraulic control lifting |
|
|
|
|
Push -pull device
|
Carriageway |
Base Length：26.24′ |
1 |
Set |
|
|
|
Dump |
Hydraulic control, can be tilted 90° |
|
|
|
|
|
Push-pull cylinder
|
1.Stroke：59″ 2.Max. thrust 40,500LBS 3.Max. pulling force 60,700LBS |
|
|
|
|
|
Roller jack
|
1.Quantity: 2, 2. Support 6,800LBS 3.Hydraulic control lifting |
|
|
|
|
Console
|
Chinese and English interface, switchable |
||||
|
|
15″ touch screen monitor, keyboard, mouse, stand |
||||
|
|
Torque pointer gauge
|
Pointer torque gauge, used for torque value reference and when computer fails. |
|||
|
|
|
Divided into low torque and high torque |
|||
|
|
|
When reaching 900PSI, the low torque meter returns to zero. |
|||
|
|
|
High torque gauge always displays pressure and torque values. |
|||
|
|
Load Cells
|
The computer collects the tension or pressure of the weighing sensor and calculates the accurate torque value based on the length of the lever arm. |
|||
|
|
One working interface |
Operator and report name can be entered |
|||
|
|
|
Tool type, buckle type/connection part name can be selected in the drop-down list. |
|||
|
|
|
The tool type and buckle type/connection component name in the drop-down list can be modified, added, deleted, and the serial number can be modified (automatically arranged according to the installation sequence number). |
|||
|
|
|
The system displays time, torque and curve in real time |
|||
|
|
PDF Report
|
Automatically generate PDF reports (record torque and torque curve) |
|||
|
|
|
The PDF report automatically generates a serial number and is saved in the root directory of disk D. The name can be modified. |
|||
|
|
USB port, can copy the report |
||||
|
|
Safe and transparent shield,UL bulletproof level 1 |
||||
|
|
13 Control lever |
||||
|
|
Target torque can be set |
||||
|
|
Scram button |
||||
|
|
Noise level ＜80 dB (A) |
||||
|
|
One pressure regulating valve |
||||
|
|
Hydraulic pipeline bridge |
||||
|
Cylinder Synchronizer |
The standard |
Origin:Shang hai China |
|||
|
Cylinder seal |
The standard |
Taiwan |
|||
|
Connection seal |
The standard |
Taper sealing |
|||
|
Hydraulic oil pipe |
The standard |
Qingdao, China |
|||
|
Oil pipe TANK bracket |
The standard |
Metal Material |
|||
|
Printer |
The standard |
Laser printer, made in China |
|||
|
Machine size |
The standard |
24 Meters（6+6+12Meters） |
|||
|
Machine weight |
The standard |
145,000kg |
|||
|
Customer to provide |
Anti-wear hydraulic oil 360L |
||||
