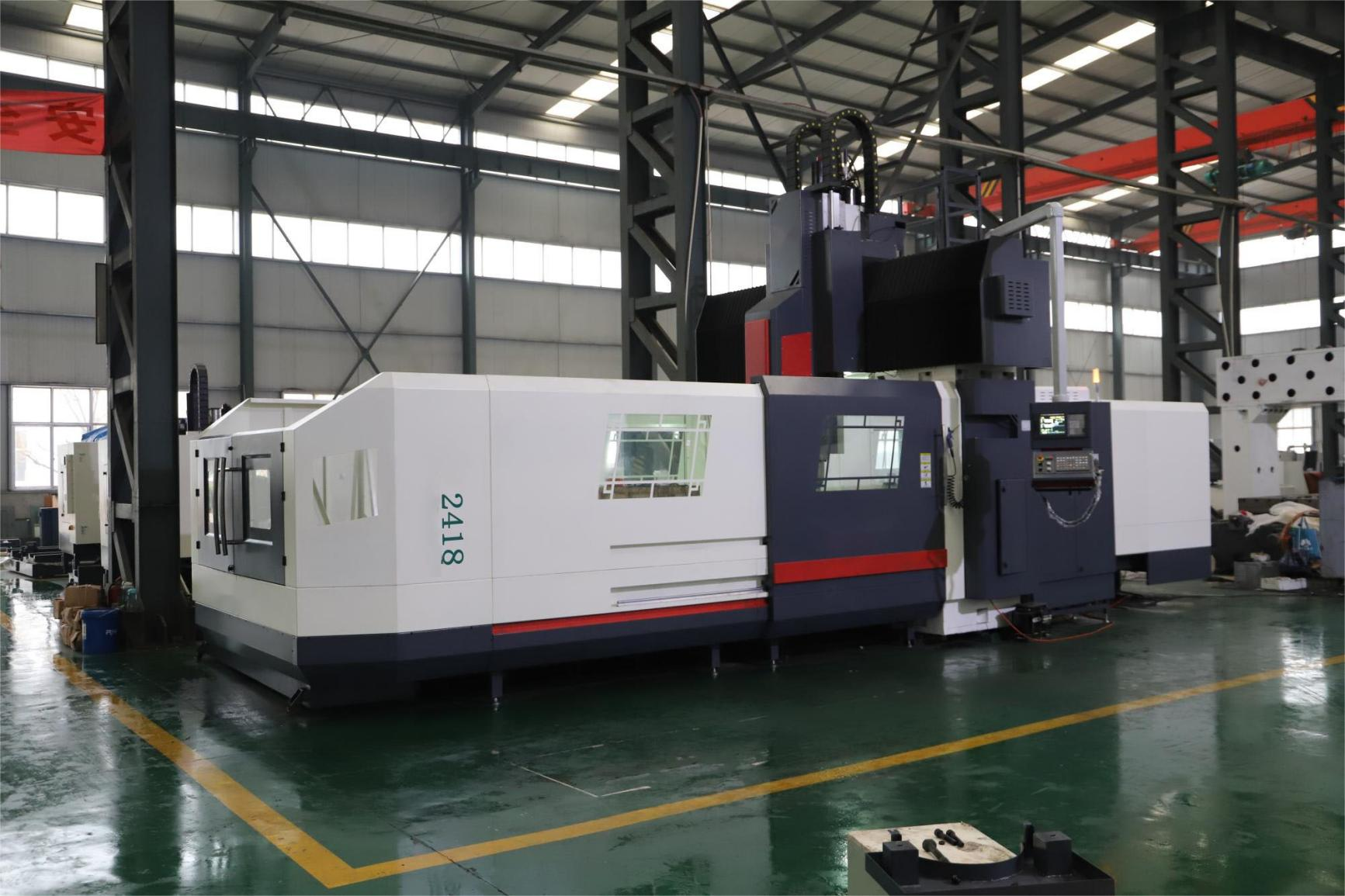

GANTRY MACHINING CENTER WITH FANUC 0i MF PLUS 1 GMC2720
$108000
Model: GMC2720
Product Name: Gantry Machining Center
Standard System: FANUC 0i MF PLUS 1
Product Description:
Spindle Drive: Belt drive, with a maximum speed of 6000 RPM.
Spindle Specifications: BT50/190, equipped with a 26KW gearbox, meeting customer requirements.
Head Structure: Heavy-duty box-type structure, reinforced with internal ribs for high rigidity.
Electrical Box Design: The electrical cabinet uses an isolated internal partition design to separate the heat-generating components of the controller. The front part features a heat exchanger for cooling, preventing external dust from entering the cabinet. The three axes are equipped with high-precision ball screws, combined with preloaded precision nuts and tail-end pre-tensioning devices, ensuring low backlash and minimal thermal deformation over extended periods.
X and Y Axes: Linear guides with high rigidity, fast response, and a maximum rapid traverse speed of 12m/min.
|
Item |
Unit |
GMC2720 |
|
Table Size |
mm |
1800 x 2500 |
|
X/Y/Z Axis Travel |
mm |
2700 / 2000 / 1000 |
|
Spindle Face to Table Distance |
mm |
180 - 1180 |
|
Gantry Width/Height |
mm |
2000 |
|
Max Table Load |
Kg |
5000 |
|
Table T-Slots |
mm |
9 - 22 - 190 |
|
X/Y/Z Axis Rapid Feed |
m/min |
15 |
|
Positioning Accuracy |
mm |
0.01 |
|
Repeat Positioning Accuracy |
mm |
0.008 / 300mm |
|
Minimum Positioning Unit |
mm |
0.008 / 300mm |
|
Spindle Max Speed |
rpm |
6000 |
|
Spindle Taper |
mm |
BT50-190 |
|
Turret Tool Magazine |
pcs |
24 tools |
|
Controller System |
/ |
FANUC 0i MF PLUS 1 |
|
Spindle Motor Power |
Kw |
26 |
|
Machine Weight |
T |
23 |
|
Overall Dimensions |
mm |
8500 x 3650 x 4010 |
