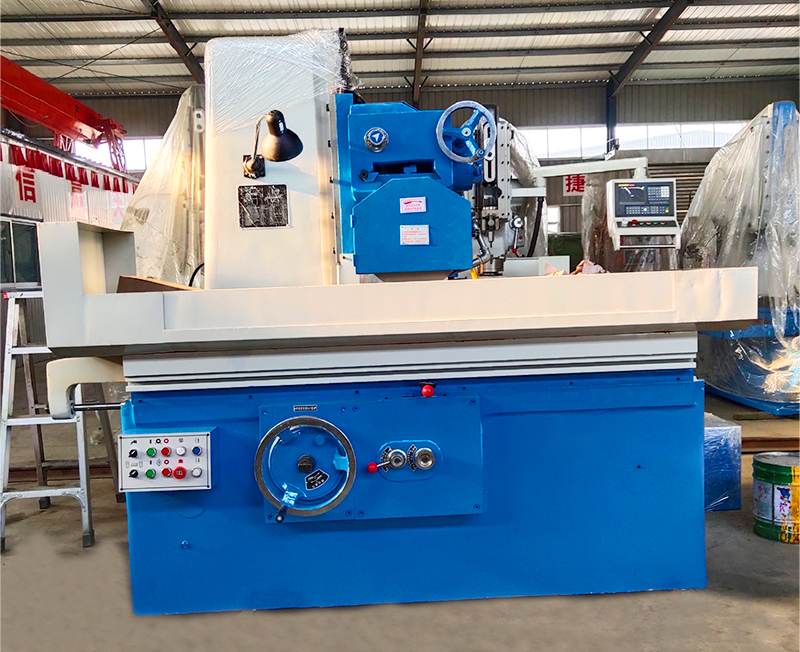

Hydraulic Surface Grinder M7140AX1000
$13500
|
Specification |
M7140AX1000 |
|
|
Worktable |
||
|
Worktable Surface Size (W×L) mm |
|
400×1000 |
|
Maximum Grinding Size (W×L×H) mm |
|
400×1000×400 |
|
Maximum Longitudinal Stroke of Worktable (mm) |
|
1100 |
|
Worktable Speed (Variable) m/min |
|
3–27 |
|
T-Slots on Worktable (Number×Width) mm |
|
3×18 |
|
Worktable Load Capacity (kg) |
|
624 |
|
Grinding Head |
||
|
Maximum Distance from Grinding Wheel Shaft to Worktable (mm) |
|
575 |
|
Lateral Feed per Stroke (mm) |
|
3–30 |
|
Maximum Stroke of Grinding Head |
Lateral (manual or hydraulic) mm |
≥430 |
|
|
Vertical (manual) mm |
400 |
|
Grinding Wheel Shaft Speed (r/min) |
|
1440 |
|
Vertical Feed Handwheel Scale Value (mm) |
|
0.01 |
|
Feed per Revolution of Handwheel (mm) |
|
1 |
|
Grinding Wheel Size (Outer Diameter × Width × Inner Diameter) mm |
|
Ф350×40×Ф127 |
|
Motor Power |
||
|
Total Motor Power (kW) |
|
9 |
|
Grinding Head Motor Power (kW) |
|
5.5 |
|
Working Accuracy |
||
|
Parallelism of Machined Surface to Base (mm) |
|
00:00.0 |
|
Surface Roughness (μm) |
|
Ra0.63 |
|
Machine Weight |
||
|
Net Weight (Approx.) (kg) |
|
3500 |
|
Gross Weight (Approx.) (kg) |
|
4000 |
|
Dimensions |
||
|
Overall Dimensions (L×W×H) mm |
|
2295×1673×2035 |
|
Packing Dimensions (L×W×H) mm |
|
2600×1750×2400 |
