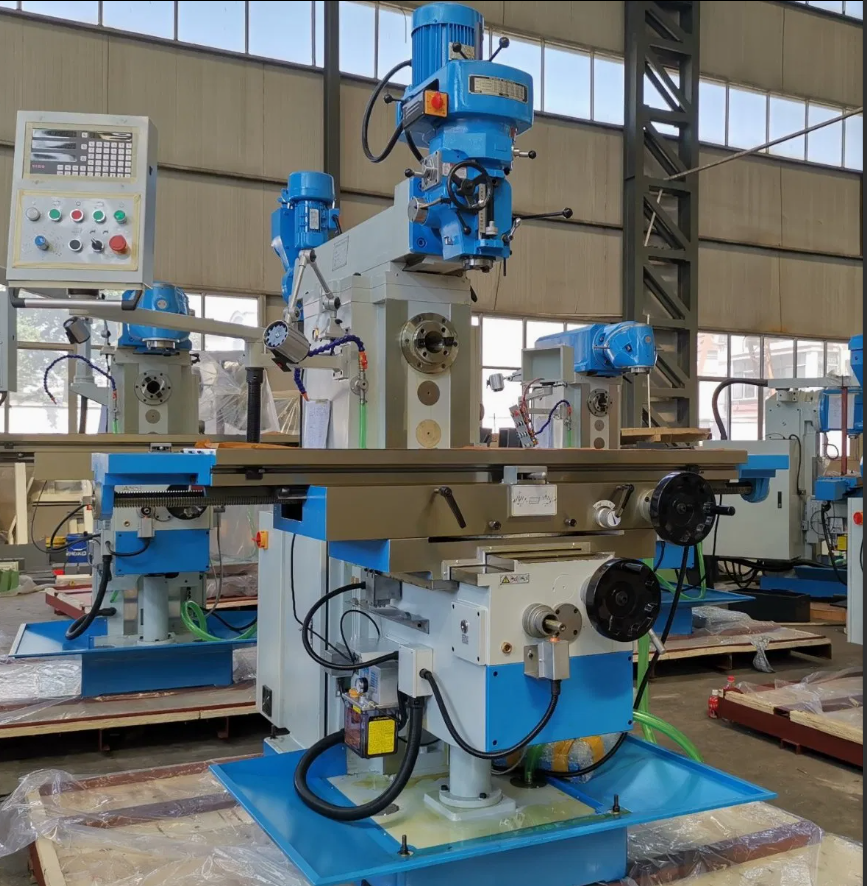

UNIVERSAL MILLING Machine ZX6336CL Servo
$11000
- Machine body in heavy construction for vibration -free working。
- Table 3 axes are controlled by one servo motor，torque large，energy efficiency，safe and reliable。
- Especial feature of this machine is the rapid feed and 8 feeds in all axis driven by servomotor.
- Rotary table can be ordered at special request。
|
Specifications |
|
X6336 Servo |
X6336C Servo |
X6336CL Servo |
|
Table size |
mm |
1325×360 |
1325x360 |
1600×360 |
|
Table travel (X, Y, Z) |
mm |
750*290* 450 |
1100*320*450 |
1300* 320 *450 |
|
Table feed. (X, Y, Z) |
mm/min |
30~750 20~500、15~375 |
||
|
Spindle taper |
|
7：24 IS050 (H)7：24 IS040 (V) |
||
|
Spindle travel |
mm |
127 (V) |
||
|
Distance between spindle nose and table surface |
mm |
200～650 |
||
|
Distance between horizontal nose and table surface |
mm |
20～470 |
||
|
Distance between spindle axis and ram surface |
mm |
245 |
||
|
Spindle speed range |
r.p.m |
12 Steps 60～1800r(H) 16 Steps 80～4660 (V)) |
||
|
T-slots(NO:/width/pitch) |
mm |
3/18/70 |
||
|
Arm travel |
mm |
550 |
||
|
Main motor power |
Kw |
5.5 (H) 3.7 (V) |
||
|
3 to feed Ac servo motor torque |
N.m |
10 |
||
|
Overall size |
mm |
2520×2100×2500 |
2520×2200×2500 |
2520×2250×2500 |
|
Net weight |
kg |
2350 |
2450 |
2500 |
