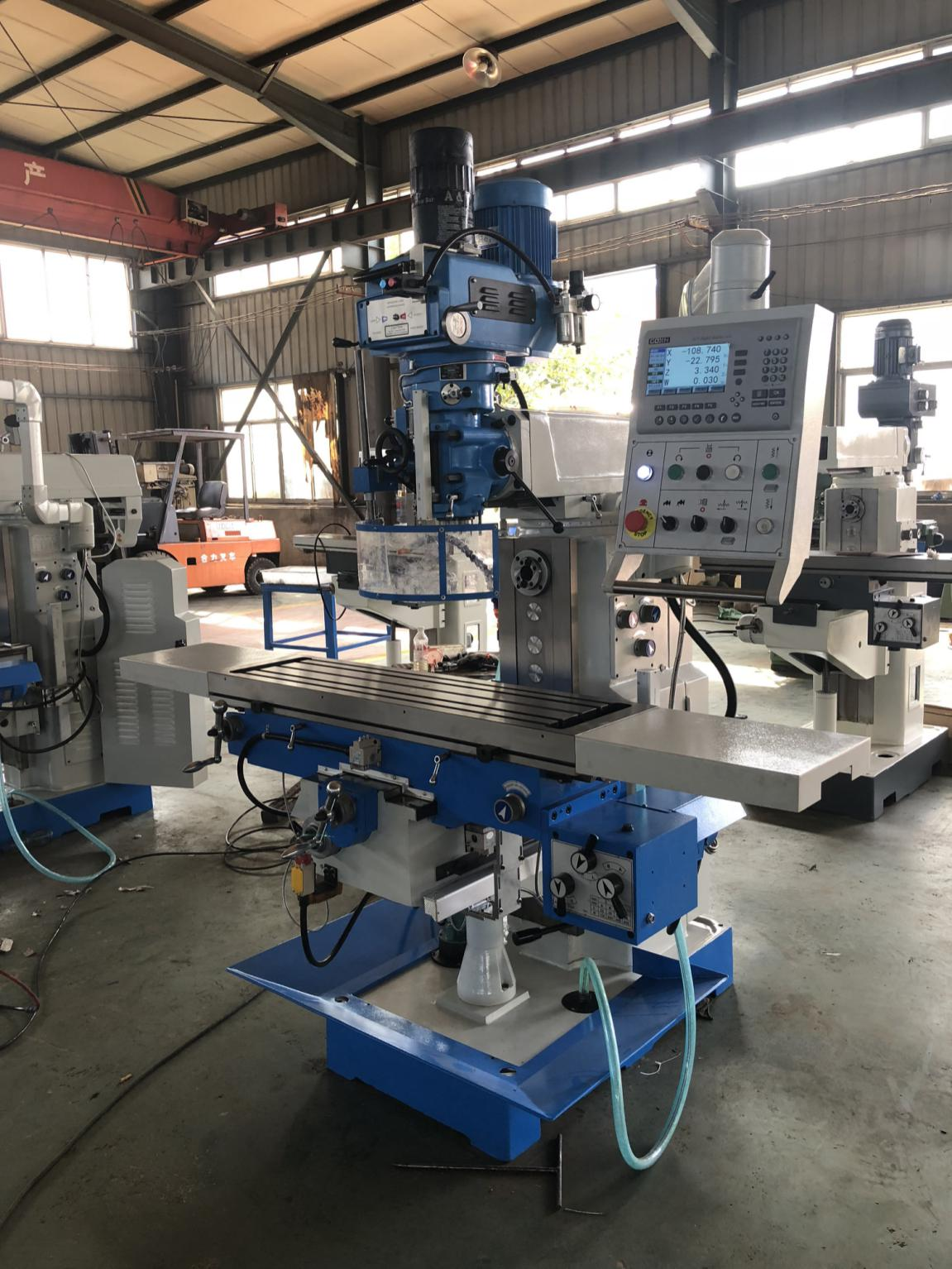

Universal Drilling & Milling Machine ZX6332C
$5800
Flexible, multi-function of milling, drilling and tapping .
Easy to operate, convenient maintenance
High speed milling head , high precision, swivel 90°, flexible processing.
Cast iron after artificial aging treatment,high precision,long service life
Belt drive, low-noise, Fast speed
Hardening treatment.
Equipped with manual lubricating device, the lubrication on the lead screw and guideway
Milling head from taiwan, 5HP-ISO40-STEP pulley
X, Y-axiswith mechanic auto-feeding, Z-AXIS with lifting motor table.
|
Item |
ZX6332C |
|
Spindle taper |
ISO40(V) ISO40(H) |
|
Diameter of quill |
127mm |
|
Distance from spindle to table |
200-600mm |
|
Distance from horizontal spindle to table |
0-400mm |
|
Distance from spindle to column |
200-700mm |
|
Spindle speeds |
Variable 60~3750 (Vertical) 60-1350(Horizontal) |
|
Spindle travel |
127mm |
|
Feeding of quill |
(3step)0.04 0.08 0.15 |
|
Head swivel angle |
±45° |
|
Table size |
1370×320mm |
|
Table travel(Horizontal/Cross/Vertical) |
1000/320/400mm |
|
Feeding range of longitudinal.cross travel |
22-555mm/min |
|
X,Y-axis Rapid feed speed |
1080mm/min |
|
Z-axis rapid feed speed |
590mm/min |
|
Z-axis motor power |
750W |
|
Max.weight of workpiece |
300kg |
|
T-slot Number/width/distance |
3/14mm/70mm |
|
Horse power for main motor |
5HP(V) 2.2kw(H) |
|
X,Y axis driving motor |
750W |
|
Overall dimension |
1720 × 1520 × 2225mm |
|
N.W./G.W. |
1500/1650kg |
