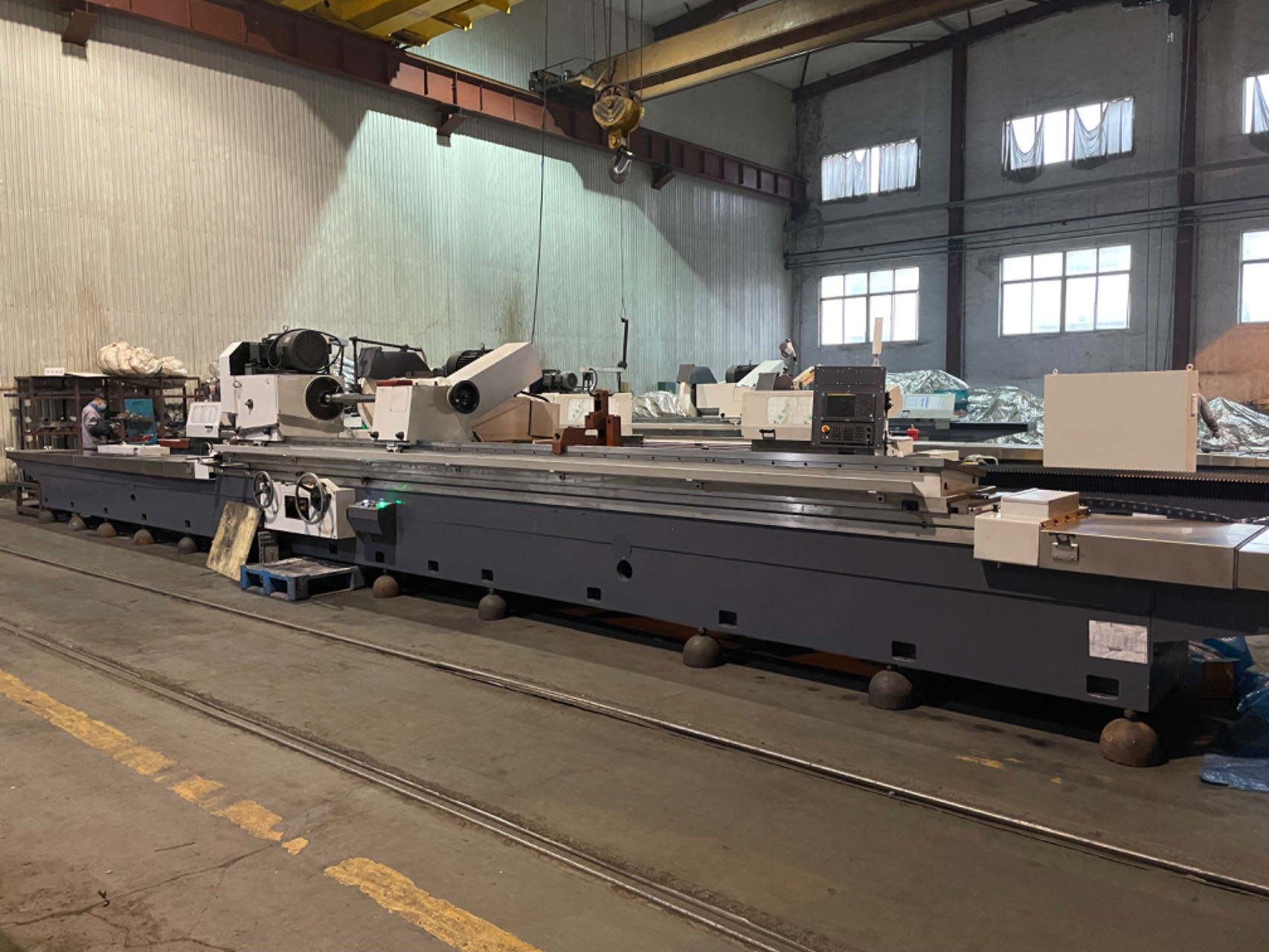

Cylindrical Grinding Machine MQ1380Ax4000
$89000
|
model
Speci. |
MQ1380A*4000 |
|
general capacity |
|
|
distance between centers (mm) |
4000 |
|
center height(mm) |
500 |
|
Dia.ground (OD) (mm) |
50~800 |
|
Max. length ground.(OD）(mm) |
4000 |
|
Max. weight of wowrkpiece(kg) |
3000 |
|
workhead |
|
|
center taper |
Metric 80# |
|
spindle speed(rpm) |
5-50 stepless |
|
wheelhead |
|
|
Wheel size（OD*W*ID））(mm) |
900*75*305 |
|
Wheel peripheral velocity(m/s) |
35 |
|
Hand feed per.revolution(mm) |
Rough:4;Fine :0.5 |
|
Hand feed per graduation(mm) |
Rough:0.02;Fine:0.0025 |
|
worktable |
|
|
Max swiveling angle of table(clockwise) |
1° |
|
Max swiveling angle of table(anticlockwise) |
2° |
|
Longitudinal speed (m/min) |
0.1-2.5 |
|
tailstock |
|
|
center taper |
Metric 80# |
|
quill travel(mm) |
70 |
|
electric system |
|
|
Motor |
|
|
wheelhead motor（KW） |
22 |
|
workhead motor（KW） |
15 |
|
machining accuracy |
|
|
roundness(um) |
3 |
|
cylindricity(um) |
12 |
|
roughness(um) |
Ra 0.32 |
|
Machine |
|
|
Package size（mm） |
11000*2400*2300 |
|
Weight (kg) |
23000 |
