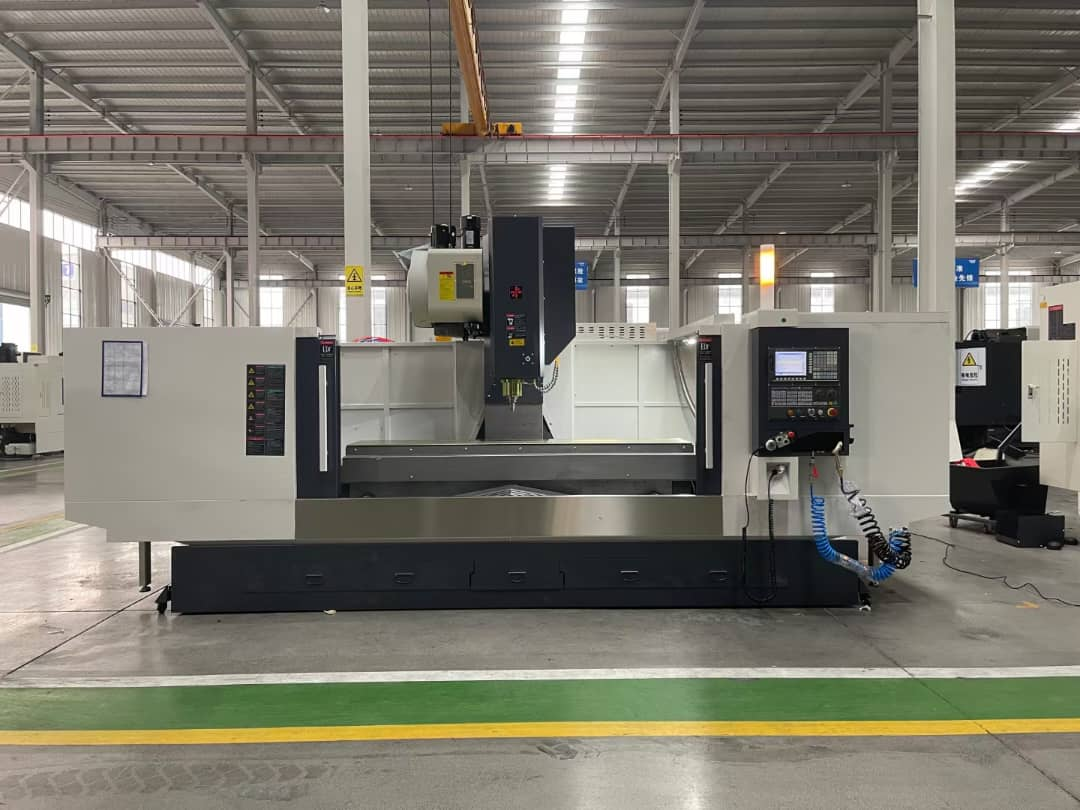

CNC Profile Machining Center VMC2100
$31000
|
Model |
VMC 2100 |
|
|
Travel |
x-axis |
2100mm |
|
y-axis |
400mm |
|
|
z-axis |
500mm |
|
|
Spindle nose to table |
280~780mm |
|
|
Spindle center to column |
405mm |
|
|
Table |
Table size |
2150x 400mm |
|
Max. loading capacity |
800kg |
|
|
Boxway designed on y-axis |
2pcs |
|
|
Size of T-slot |
18x3x 100mm |
|
|
Spindle |
Spindle speed |
8000rpm |
|
Belt type |
HTD880-5GT-40 |
|
|
Spindle taper |
BT40 |
|
|
Pull stud bolt |
BT40 |
|
|
Spindle bore |
120mm |
|
|
Spindle nose taper |
#40 |
|
|
Slide way |
x- axis linear motion rolling guide |
35mmx6 |
|
y-axis linear motion rolling guide |
35mmx8 |
|
|
z-axis linear motion rolling guide |
35mmx4 |
|
|
x/y/z axis motor connection model |
direct type |
|
|
Axis |
Ball screw accuracy |
C3 |
|
Ball screw diameter x.y.z |
Φ40,Φ40, Φ40 |
|
|
Lead |
x:16mm y:12mm Z :12 mm |
|
|
Speed |
x axis motor |
15/2000rpm |
|
y axis motor |
15/2000rpm |
|
|
z axis motor |
18/2000rpm |
|
|
Spindle motor |
8000rpm |
|
|
11KW |
||
|
Feed rate |
x y axis rapid feed rate |
12000mm/min |
|
z axis rapid feed rate |
18000 mm/min |
|
|
Cutting speed |
0~12000mm/min |
|
|
Tool |
Max. tool length |
300mm |
|
Max. tool dia. |
φ80mm |
|
|
Max. tool weight |
8kg |
|
|
Tool specification |
BT40 |
|
|
Magzine |
|
Okada 16 tools disc magzine |
|
Others |
Coolant motor |
AC 1.2KW-4P |
|
Pump flow |
30L/min |
|
|
Tank volume |
300L |
|
|
Lubrication system |
Automatic |
|
|
Accuracy |
Repeat positioning accuracy |
0.006mm |
|
Positioning accuracy |
0.01mm |
|
|
Least input increment |
0.001mm |
|
|
Power require |
Power source |
380V 50Hz |
|
Power consumption |
30KW |
|
|
Machine size |
Net weight |
5000kg |
|
Packing dimensions |
4500x2400x2500mm |
|
