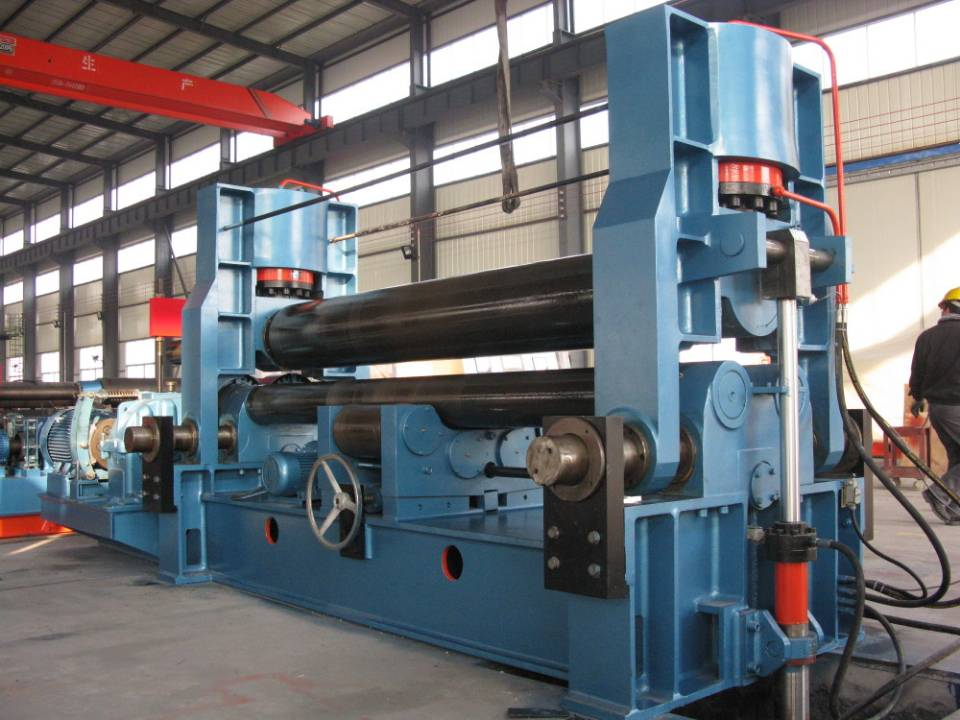

Hydraulic 3 roller plate rolling machine with pre-bending W11S-12×2500
$19500
|
Model |
Unit |
W11S-12×2500 |
|
Pressure under up-roller |
T |
130 |
|
The yielding limit |
Mpa |
Q235,σs≤ 245 ; Q345,σs≤345 ; |
|
Max pre-bend thickness |
mm |
10(σs≤ 245) 8(σs≤ 345)
|
|
Max bend thickness |
mm |
12(σs≤ 245) 10(σs≤ 345)
|
|
Max width of plate |
mm |
2500 |
|
Length of rollers |
mm |
2550 |
|
The rolling capacity |
mm |
T12*W2500*Φmin600(non pre-bending,σs≤ 245Mpa); T10*W2500*Φ min600(pre-bending,σs≤ 245Mpa); T10*W2500*Φmin600(non pre-bending,σs≤ 345Mpa); T8*W2500*Φ min600(pre-bending,σs≤ 345Mpa); |
|
The straight edges |
mm |
≤2.5×plate thickness |
|
The diameter of up-roller |
mm |
Φ270 |
|
The diameter of down-roller |
mm |
Φ150 |
|
The distance of two bottom rollers |
mm |
245 |
|
Support rollers |
mm |
1group×4 |
|
Up roller lift speed |
mm/min |
120 |
|
Rolling speed |
m/min |
4.5 |
|
Main motor power |
KW |
7.5 |
|
Hydraulic motor power |
KW |
4 |
|
Move motor power |
KW |
2.2 |
|
Size |
mm |
4500*1400*1500 |
|
Weight |
T |
About 6.0 |
