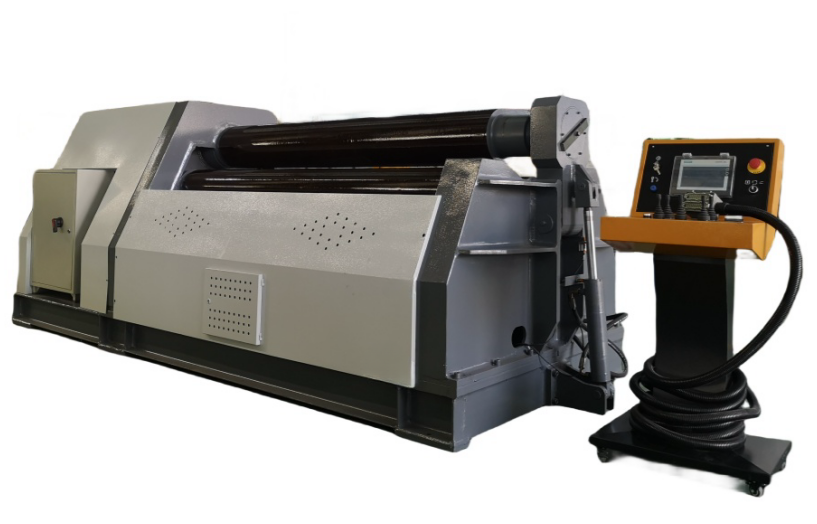

4-Roll CNC Plate Rolling Machine W12-16X2500
$22000
|
Model |
W12-16 x 2500 |
W12-16 x 3000 |
|
Top Roll Diameter |
Φ320mm |
Φ350mm |
|
Lower Roll Diameter |
Φ300mm |
Φ320mm |
|
Side Rolls Diameter |
Φ250mm |
Φ280mm |
|
Maximum Bending Thickness |
16mm(CS) |
16mm(CS) |
|
Maximum Pre-bending Thickness |
12mm(CS) |
12mm(CS) |
|
Maximum Working Length |
2500mm |
3000mm |
|
Length of Rolls |
2550mm |
3050mm |
|
Minimum Reel Diameter(Full Load) |
500mm |
550mm |
|
Drive Roll and Type |
Top roll as drive roll driven by hydraulic motor |
Top roll as drive roll driven by hydraulic motor |
|
Material Yield Limit |
≤245Mpa |
≤245Mpa |
|
Rotation Speed |
About 4m/min |
About 4m/min |
|
Pre-bending Remaining Straight Edge |
≤1.5*Plate Thickness |
≤1.5*Plate Thickness |
|
Main Motor Power |
15KW |
18.5KW |
