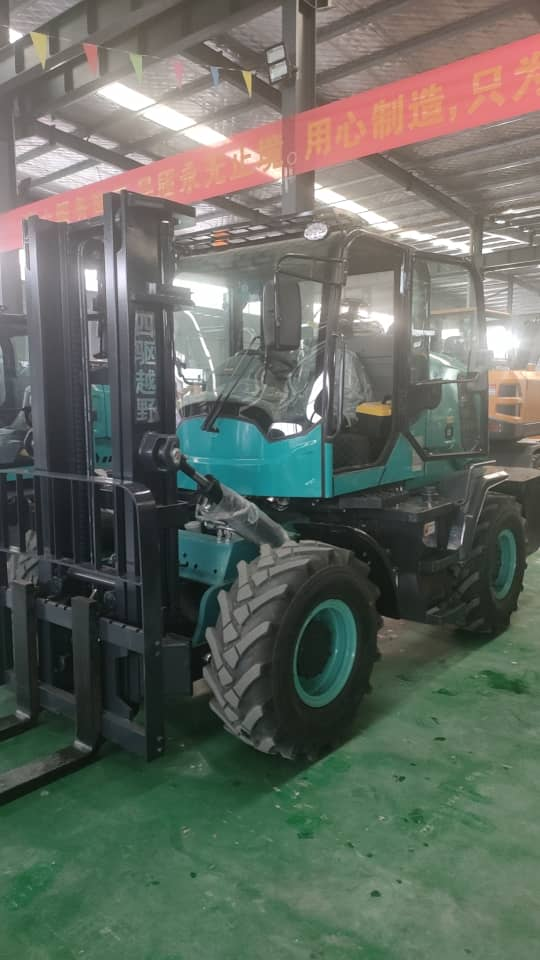

3.5T 4WD Forklift VTF-3500
$22500
| Model | VTF-3500B | VTF-3500A |
| Dimensions | 4200*1800*2700mm | 4200*1800*2700mm |
| Engine model | YUNNEI YN27(490) | YUNNEIYN27GBZ (490 Turbocharged) |
| Fork length | 1220mm | 1220mm |
| Rated lift weight | 3500kg | 3500kg |
| Turning radius | 3500mm | 3500mm |
| Platform ground clearance | 300mm | 300mm |
| Axle | Small wheel side weight cast stee bridge |
Small wheel side weight cast steel bridge |
| Tire | 20.5/70-16 | 20.5/70-16 |
| Gantrywidth | Heavy duty gantry | Heavy duty gantry |
| Overall weight | 4200kg | 4200kg |
| Engine power | 42kw | 36.8kw |
| Gradeability | ≤38° | ≤38° |
| Lifting height | 3000mm | 3000mm |
| Front ground clearance | 250-350mm | 250-350mm |
| Drive type | 4-wheel drive | 4-wheel drive |
| Gearbox | 265 Double high and low speed | 265 Double high and low speed |
| Frame | Hinged thick 3mm | Hinged thick 3mm |
