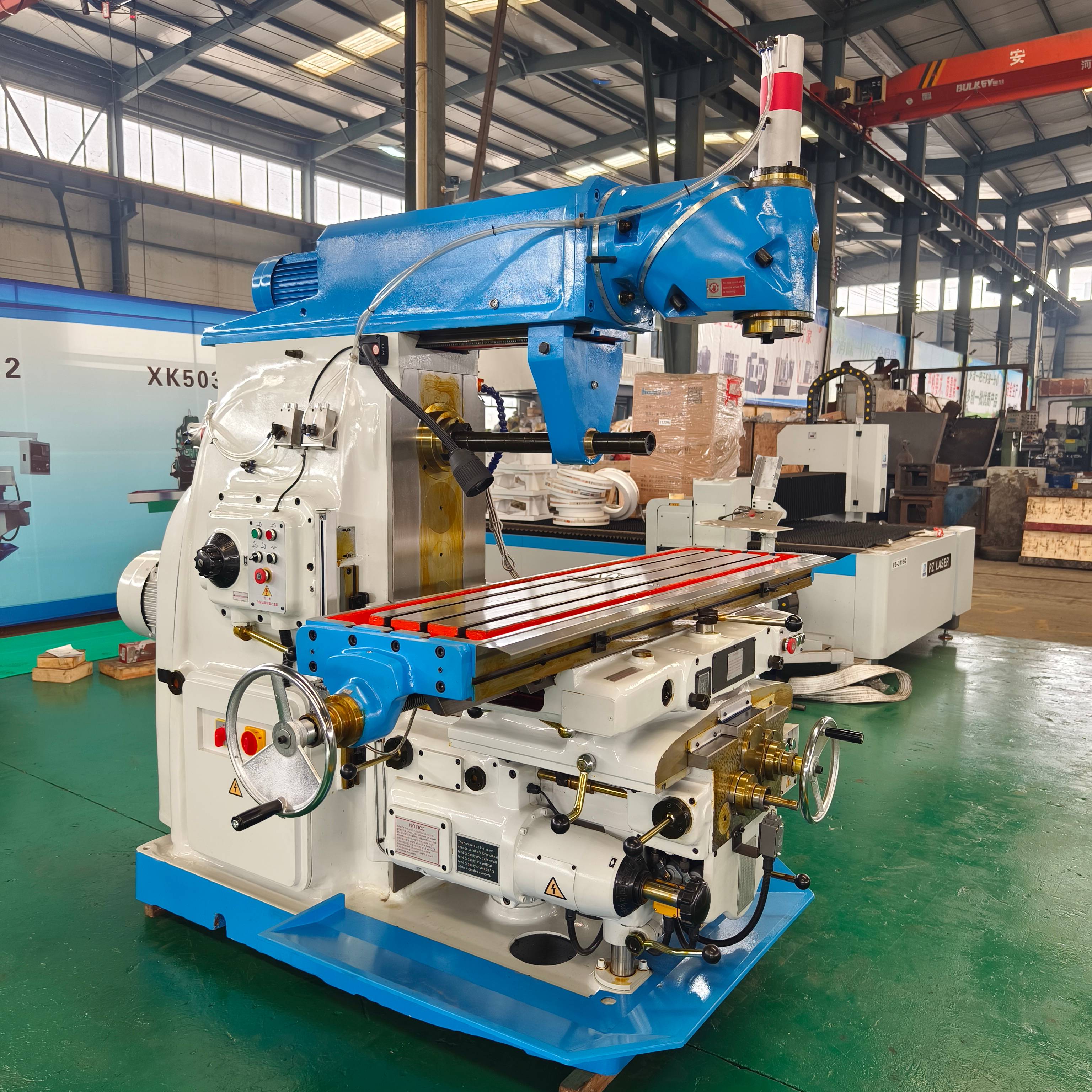

Swivel Head Universal Milling Machine X6240
$16000
| Item | X6240 |
| Spindle Taper | ISO40(V)/ISO 50(H) |
| Worktable Size(mm) | 1700X400 |
| MAX ManualWorktable Travel(L/H/V)(mm) | 900/315/380 |
| MAX Automatic Worktable Travel(L/H/V)(mm) | 880/300/360 |
| Worktable T-Slot(nunmber/width/distance)(mm) | 3/18/70 |
| SwivelAngle ofWorktable | ±45 degree |
| Swivel Angle of Vertical Milling Head | 360 degree |
| Spindle Speed | 12 steps(V),18 steps(H) |
| Spindle Speed Range(r.p.m) | 35-1600(V),30-1500(H) |
| Max Load (Kg) | 700 |
| Main Motor(Kw) | 4Kw(V),11 Kw(H) |
| Power Feed Motor(Kw) | 3.0 |
| Coolant Pump Motor(w) | 125 |
| Range of Table Power Feed (18steps)(L,H/V)(mm/min) | 23.5--1180(L/H)//8---394(V) |
| Speedof Table Rapid Traveling(mm/min) | 2300(L/H)/770(V) |
| Overall Dimension(mm) | 2400×2300×2100 |
| AC Power Input(V/HZ) | 380V/415V50HZ |
| N.W | 4100kg |
