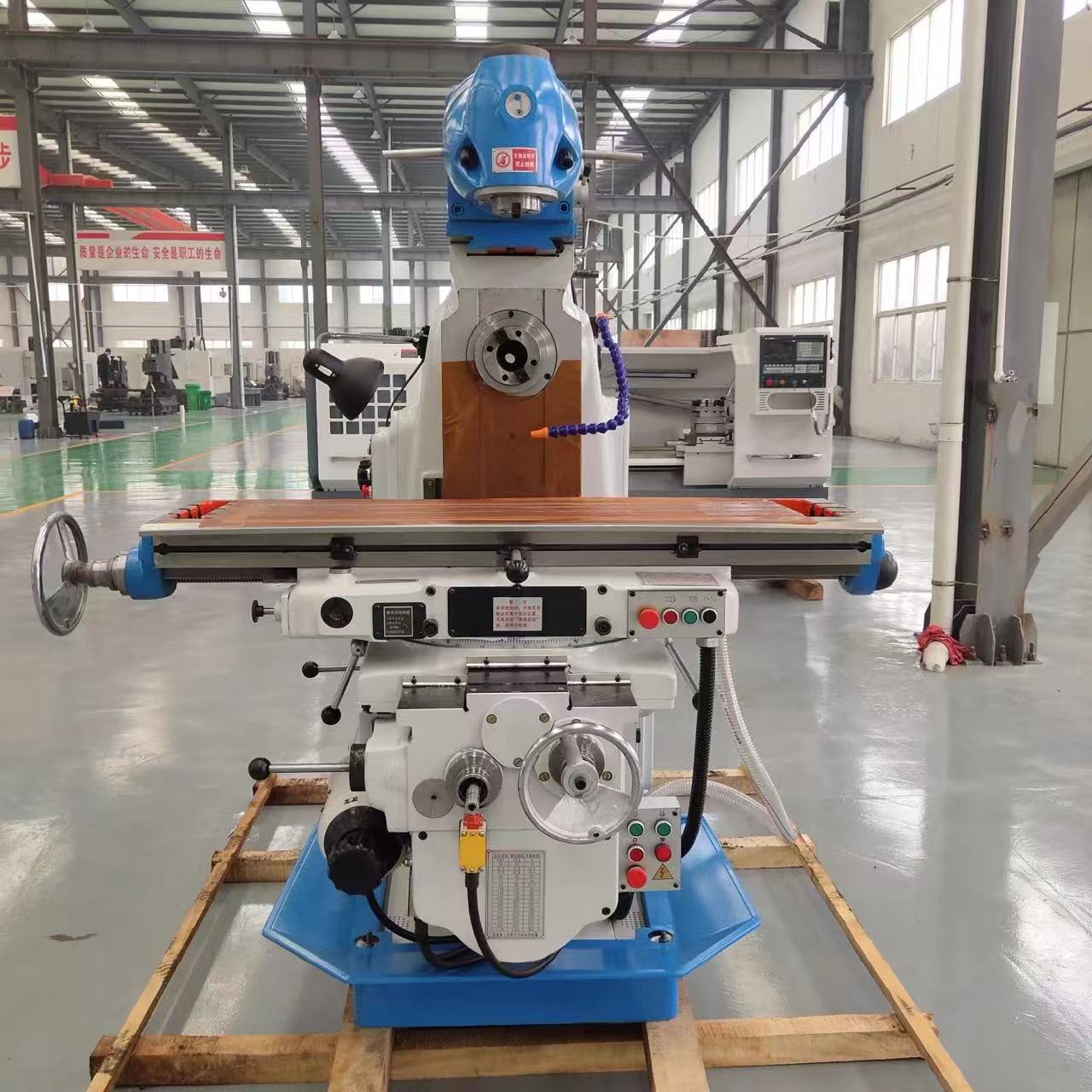

Ram Milling Machine X6432
$13000
| Specification | Unit | X6432 | X6432A |
| Table size | mm | 320×1325 | 320×1600 |
| Max Longitudinal travel(manual/auto) | mm | 700/680 | 900/880 |
| Max transverse travel(manual/auto) | mm | 255/240 | |
| Max transverse vertical travel(manual/auto) | mm | 320/300 | |
| Max rotary angle | ±45° | ||
| T Slots(N*W*D) | 3/18/70 | ||
| Spindle hole taper | mm | 7:24 ISO50 | |
| Distance of Horizontal spindle axis to table surface: | mm | 30~350 | |
| Distance of table center to verticalspindle | mm | 190~510 | |
| Distance of table center to vertical ways of column | mm | 470~215 | |
| Distance of table center ram | mm | 155 | |
| Speed steps | (V)12(H)18 | ||
| Spindle speed range | r.p.m | (V)60-1750(H)30-1500 | |
| Table feed steps | 18 | ||
| Table feed range Longitudinal | mm/min | 23.5~1180 | |
| Table feed range cross | mm/min | 23.5~1180 | |
| Table feed range vertical | mm/min | 8~394 | |
| Table rapid moving speed Longitudinal/cross | mm/min | 2300 | |
| Table rapid moving speed vertical | mm/min | 770 | |
| Power of spindle | Kw | (V)4 (H)7.5 | |
| Spindle of motor range | r.p.m | 1440 | |
| Feed motor | Kw | 1.5 | |
| Feed of motor range | r.p.m | 1440 | |
| Net Weight | Kg | 2900 | 3000 |
| Overall sizes | mm | 2294×1770×1780 | 2294×2050×1780 |
