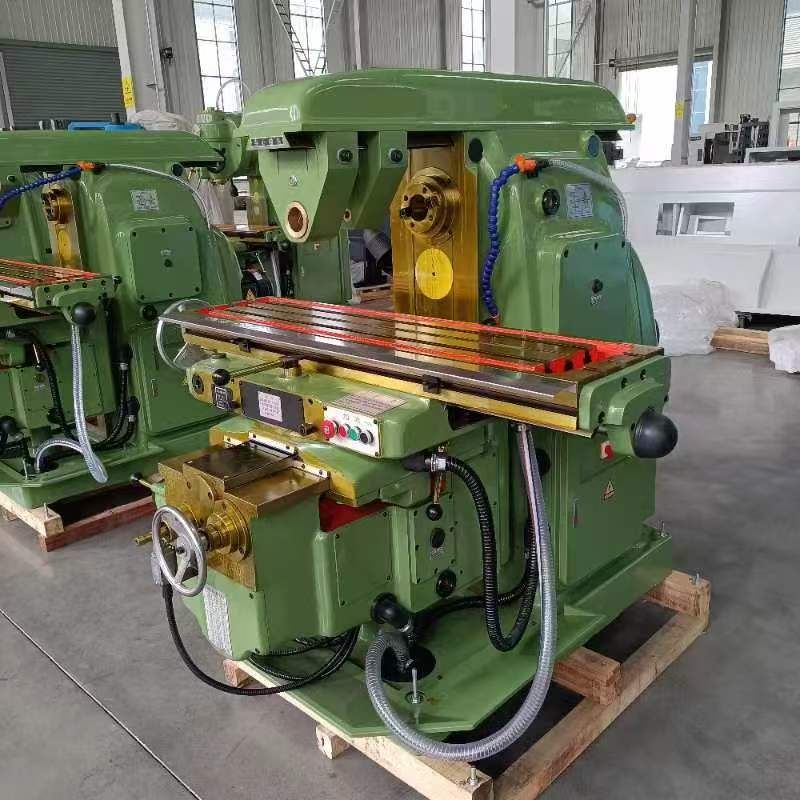

Universal Milling Machine Model X6140
$13000
| Specification | Units | X6140 |
| Tablesize | mm | 1700×400 |
| No.of T-slots | 3 | |
| Width of T-slots | mm | 48 |
| Max.load | kg | 800 |
| Longitudinal travel(manual/auto) | mm | 900/880 |
| Cross travel(manual/auto) | mm | 315/300 |
| Vertical travel(manual/auto) | mm | 350/330 |
| Rapid feedspeed | mm/min | X:2300Y2300.Z:770 |
| Table feed range(XY/Z) | mm/min | 23.5-1180/23.5-1180/8-394 |
| Spindle speed range | r/mm | 30-1500 |
| Spindle speed step | (steps) | 18 |
| Distance between spindle axis and table surface | mm | 30-380 |
| Power of spindle motor | kw | 11 |
| Overalldimension(LxWxH) | mm | 2556×2159x1770 |
| Net weight | kg | 3850 |
