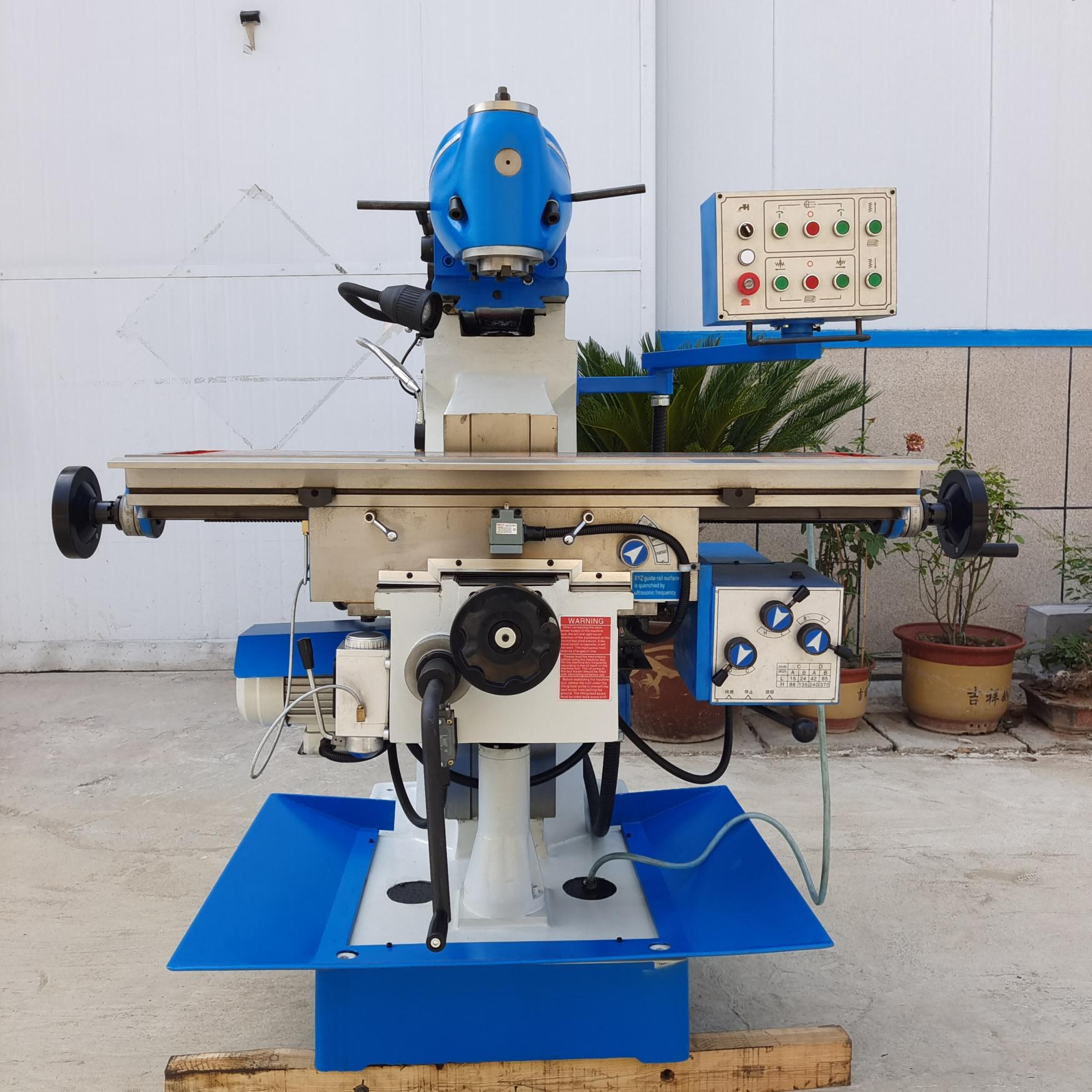

UNIVERSAL SWIVAL HEAD MILLING MACHINE XQ6226
$5600
|
Parameter |
Unit |
XQ6226 |
|
Worktable Area |
mm |
1270 × 260 |
|
Number of T-Slots (Width × Spacing) |
mm |
3 × 14 × 63 |
|
Maximum Longitudinal Travel |
mm |
700 |
|
Maximum Transverse Travel |
mm |
240 |
|
Maximum Vertical Travel |
mm |
300 |
|
Saddle Travel |
mm |
200 |
|
Distance from Vertical Spindle to Worktable |
mm |
150 – 350 |
|
Maximum Rotation Angle of Vertical Milling Head |
° |
360 |
|
Minimum Distance from Vertical Spindle to Column Face |
mm |
300 |
|
Spindle Taper |
- |
ISO40 |
|
Spindle Speed Range (Number of Steps) |
steps |
12 |
|
Spindle Speed Range (Vertical Milling) |
rpm |
35 – 1660 |
|
Feed Steps for Worktable |
steps |
8 |
|
Longitudinal, Transverse, Vertical Feed Speed Range |
mm/min |
18 – 480 |
|
Longitudinal, Transverse, Vertical Rapid Traverse Speed |
mm/min |
480 |
|
Milling Head Motor Power |
kW |
2.2 |
|
Lifting Motor Power |
kW |
1.1 |
|
Feed Motor Power |
kW |
0.75 |
|
Coolant Pump Power |
W |
40 |
|
Net Weight |
kg |
1210 |
|
Overall Dimensions (L×W×H) |
mm |
1500 × 1400 × 1780 |
|
Packaging Dimensions |
mm |
1550 × 1650 × 2200 |
