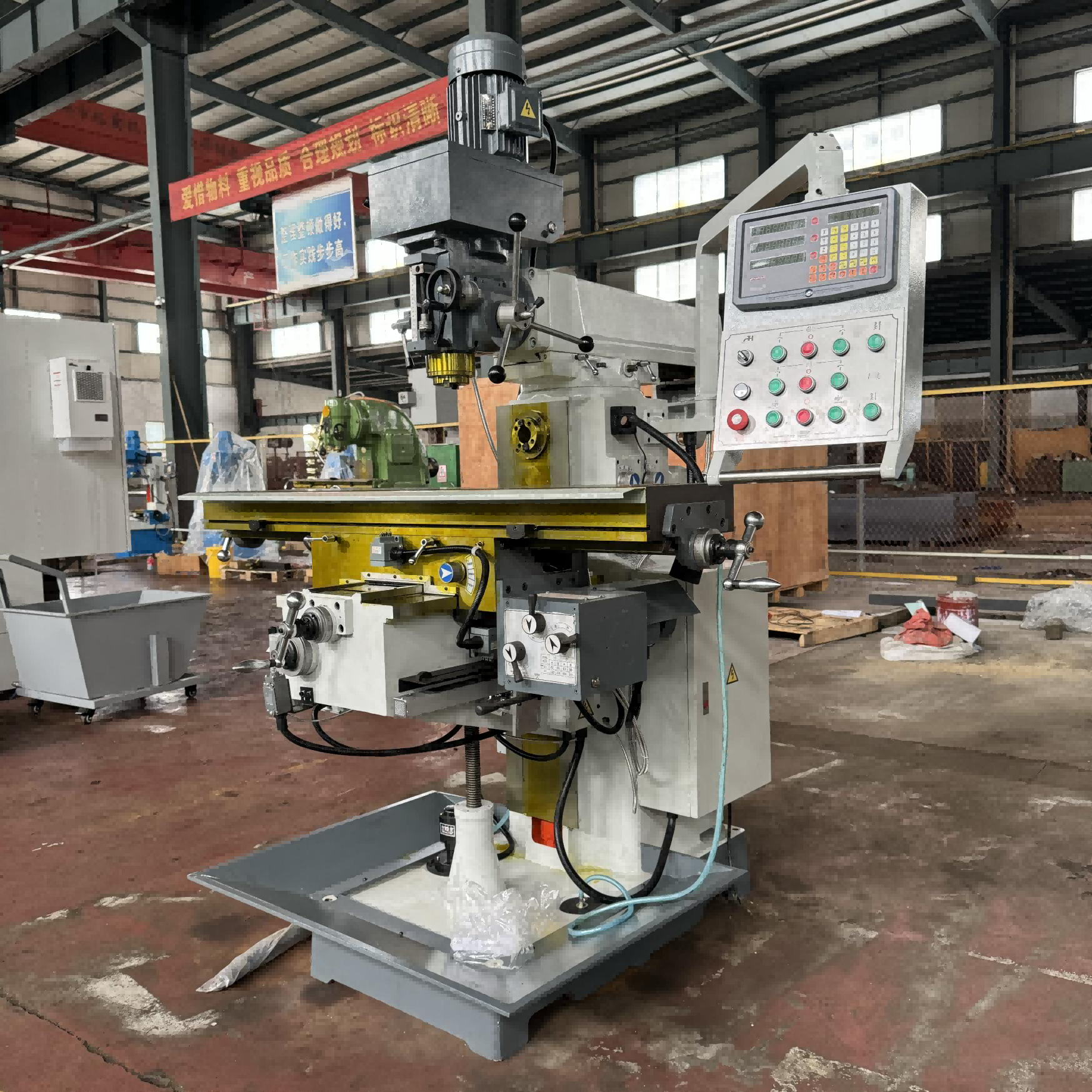

Drilling and Milling Machine ZX6350 with X/Z power feed unit, lifting motor
$4200
|
Parameter |
Unit |
ZX6350 |
|
Spindle Taper |
- |
7:24 ISO40 |
|
Maximum Drilling Diameter (Vertical) |
mm |
50 |
|
Maximum Milling Diameter (Vertical) |
mm |
30 |
|
Boring/Tapping Maximum Diameter |
mm |
120 (boring) / M16 (tapping) |
|
Spindle Stroke |
mm |
120 |
|
Distance from Vertical Spindle Center to Column Surface |
mm |
200 – 500 |
|
Distance from Spindle Face to Table Surface (Vertical) |
mm |
100 – 460 |
|
Distance from Horizontal Spindle Center to Table Surface |
mm |
0 – 360 |
|
Spindle Speed Range (Number of Gears) |
rpm |
115 – 1750 (8 gears) / 40 – 1300 (12 gears) |
|
Worktable Dimensions |
mm |
1200 × 280 |
|
Worktable Travel (Longitudinal) |
mm |
600 |
|
Worktable Travel (Transverse) |
mm |
260 |
|
Worktable Travel (Vertical) |
mm |
360 |
|
Number of T-Slots on Worktable |
- |
3 |
|
T-Slot Width |
mm |
14 |
|
T-Slot Spacing |
mm |
63 |
|
Main Motor Power (Vertical) |
kW |
0.85 / 1.5 |
|
Main Motor Power (Horizontal) |
kW |
2.2 |
|
Coolant Pump Motor Power |
W |
40 |
|
Overall Dimensions (L×W×H) |
mm |
1660 × 1340 × 2130 |
|
Net Weight |
kg |
1250 |
