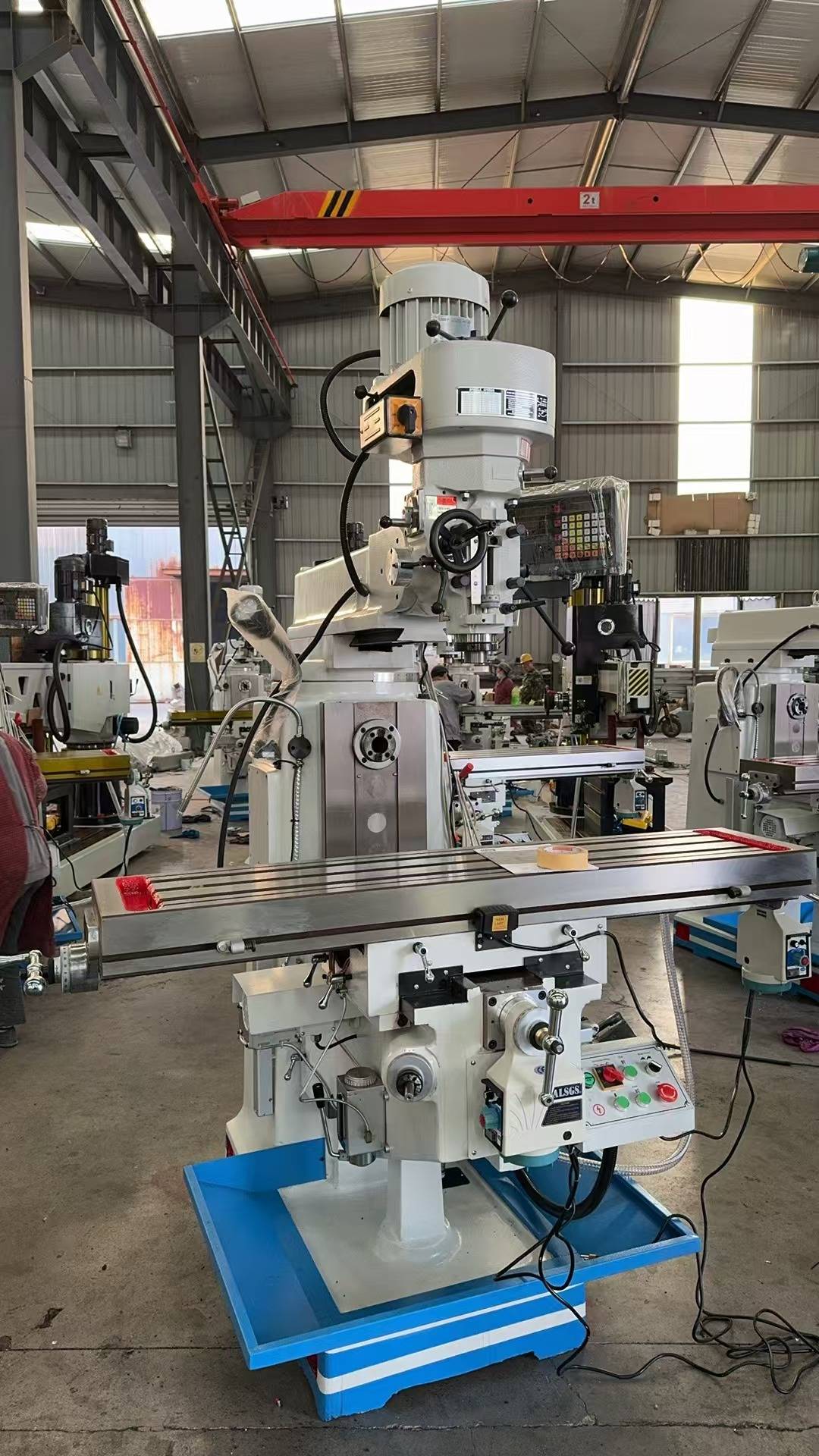

Vertical Turret Milling Machine 4H with X/Z power feed unit, lifting motor
$4000
|
Parameter |
Unit |
4H Vertical Turret Milling Machine |
|
Worktable Area |
mm |
1270 × 254 |
|
Longitudinal Travel (X) |
mm |
750 |
|
Cross Travel (Y) |
mm |
350 |
|
Vertical Travel (Z) |
mm |
300 |
|
Spindle Taper |
- |
R8 |
|
Distance from Spindle Face to Table Surface |
mm |
80 – 400 |
|
Distance from Spindle Center to Column Guideway |
mm |
100 – 650 |
|
Spindle Speed Range |
r/min |
75 – 4550 |
|
Number of T-Slots on Worktable |
- |
3 |
|
T-Slot Width |
mm |
16 |
|
T-Slot Spacing |
mm |
80 |
|
Main Motor Power |
kW |
2.2 kW |
|
Three-Axis Feed Motor Torque |
N·m |
- |
|
Overall Dimensions |
mm |
1566 × 1650 × 2100 |
|
Gross Weight |
kg |
1300 |
