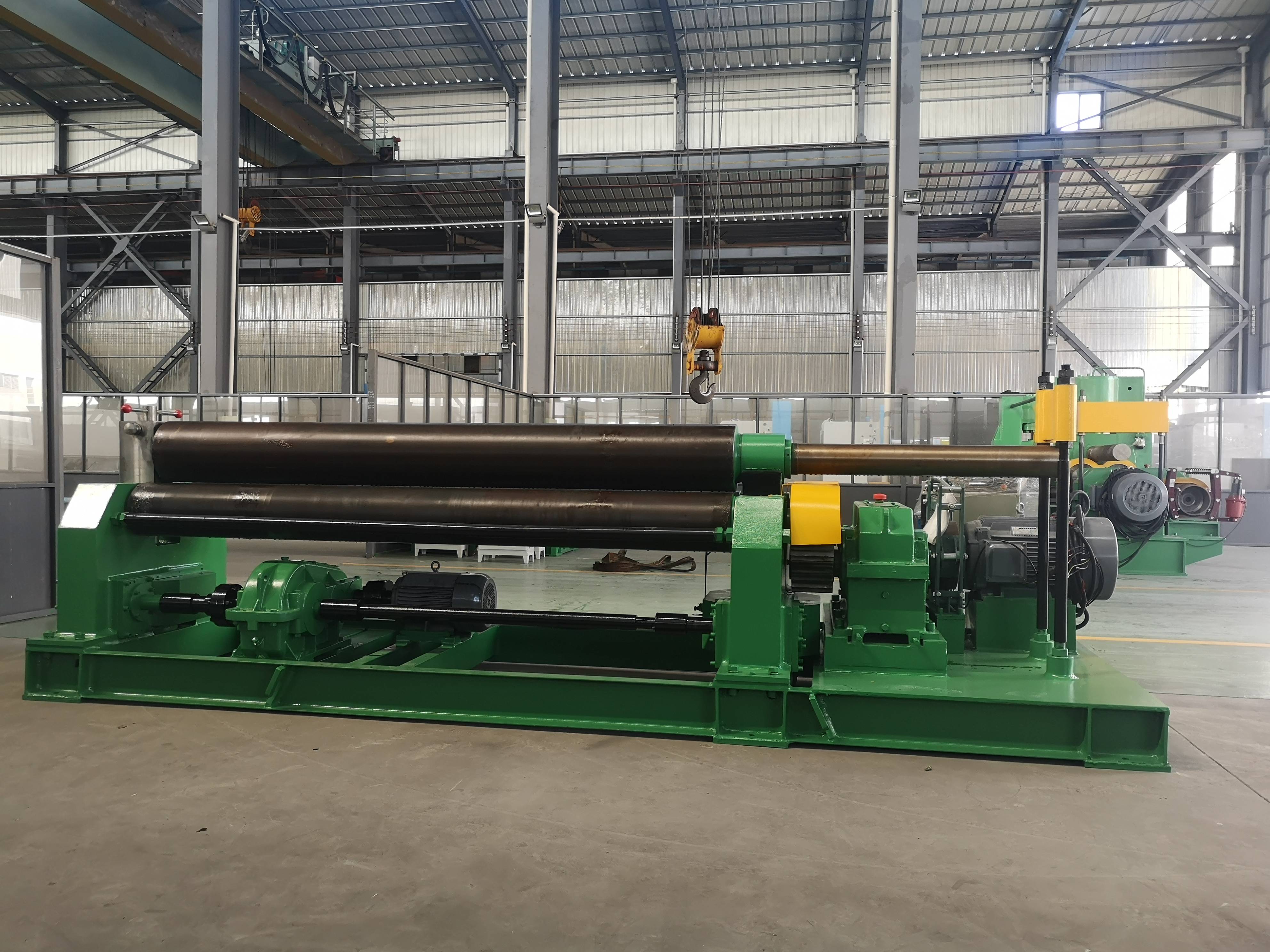

Mechanically symmetric 3 roller plate rolling machine W11-12X2500
$8600
|
Model |
|
W11-12×2500 |
W11-12×3000 |
|
Type |
|
Mechanically symmetric |
|
|
Maximum working length |
mm |
2500 |
3000 |
|
Length of working length |
mm |
2550 |
3050 |
|
Maximum plate thickness |
mm |
12 |
12 |
|
Plate yield strength |
Mpa |
245 |
245 |
|
Upper roll diameter |
mm |
￠260 |
￠280 |
|
Lower rolls diameter |
mm |
￠200 |
￠240 |
|
Distance between lower rolls |
mm |
320 |
360 |
|
Minimum reel diameter(full load) |
mm |
T12×B2500×Φmin500mm |
T12×B3000×Φmin700mm |
|
Rotation speed |
m/min |
About 4 |
About 4 |
|
Main motor power |
kw |
7.5 |
11 |
