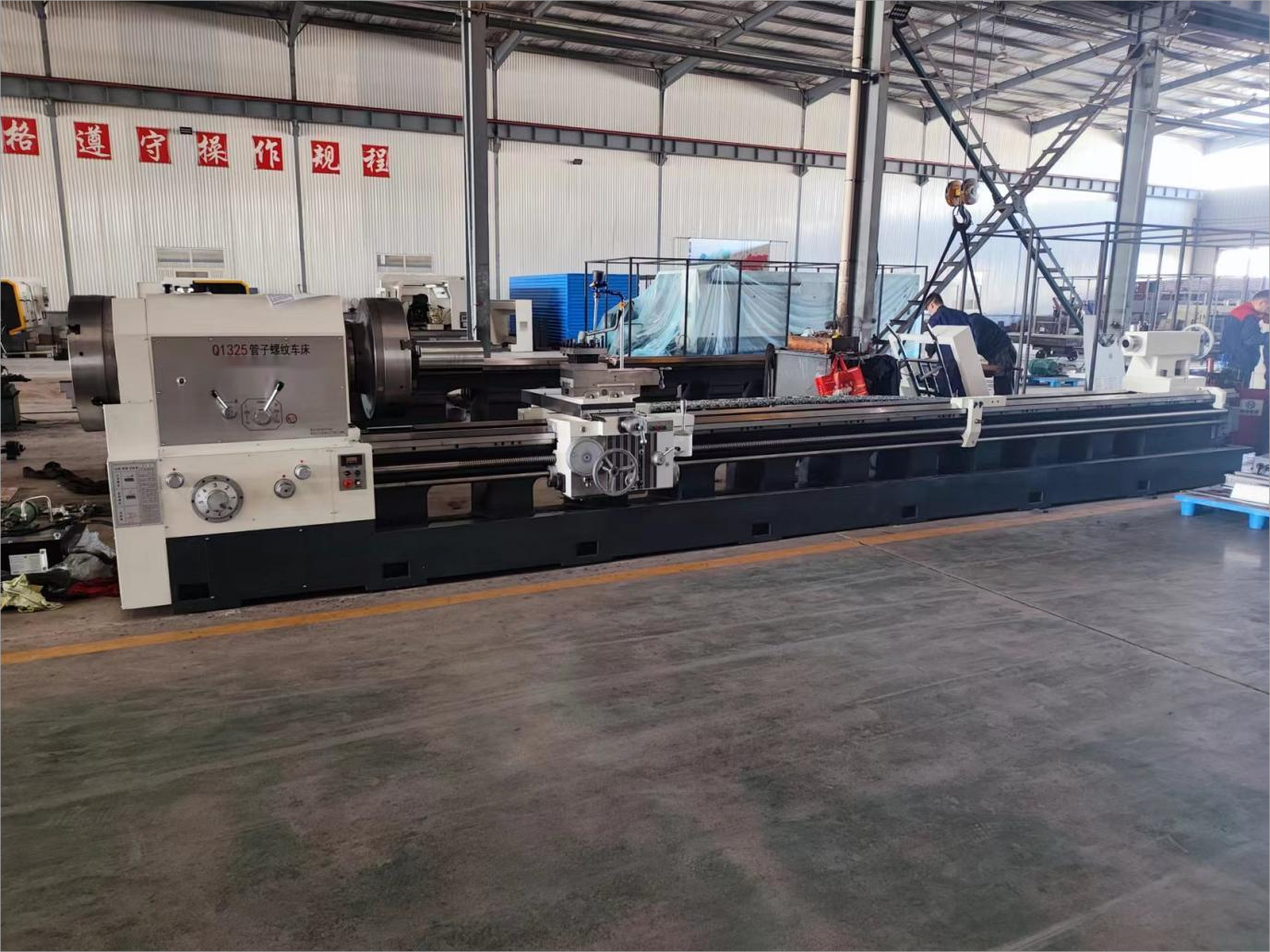

Pipe thread lathe Q1332x3000
$50000
|
SPECIFICATION OF CNC LATHE MACHINE |
|||
|
ITEMS |
UNIT |
Q1332 pipe threading Lathe |
|
|
Capacity |
Swing over bed |
mm |
1000 |
|
Swing over cross slide |
mm |
610 |
|
|
Distance between centers |
mm |
3000 |
|
|
Pipe threading range |
mm |
190-320 |
|
|
Guideway width |
mm |
755 |
|
|
Max. load capacity |
T |
6 |
|
|
Spindle |
Spindle bore |
mm |
330 |
|
Spindle speed steps |
- |
FWD. 9 steps |
|
|
Spindle speed range |
rpm |
7.5-280 |
|
|
Chuck |
mm |
φ780/4-jaw electric |
|
|
Turret |
Turret/tool post |
- |
Manual 4 position |
|
Tool shank size |
mm |
45 x 45 |
|
|
Carriage |
X axis travel |
mm |
520 |
|
Z axis travel |
mm |
2750 |
|
|
X axis feed grade/range |
mm/r |
32/0.05-0.75 |
|
|
Z axis feed grade/range |
mm/r |
32/0.1-1.5 |
|
|
X axis rapid traverse |
mm/min |
1870 |
|
|
Z axis rapid traverse |
mm/min |
3740 |
|
|
Metric thread grade/range |
mm |
23/1-15 |
|
|
Inch thread grade/range |
T.P.I |
22/28-2 |
|
|
Tailstock |
Tailstock quill diameter |
mm |
φ160 |
|
Tailstock quill taper |
- |
MT6 |
|
|
Tailstock quill travel |
mm |
300 |
|
|
Motors |
Main spindle motor |
kW |
22 |
|
Rapid traverse motor |
kW |
1.5 |
|
|
Coolant pump motor |
kW |
0.125 |
|
|
Accuracy |
Turning accuracy standard |
-- |
IT7 |
|
Turning roundness |
mm |
≤0.015 |
|
|
Turning cylindricity |
mm |
0.040/300 |
|
|
Turning flatness |
mm |
0.025/Φ300 |
|
|
Turning roughness |
μm |
Ra 3.2 |
|
|
Dimensions |
Width x Height |
mm |
2100 x 1650 |
|
Length |
mm |
6400 |
|
|
Weight |
Net weight |
T |
13 |
