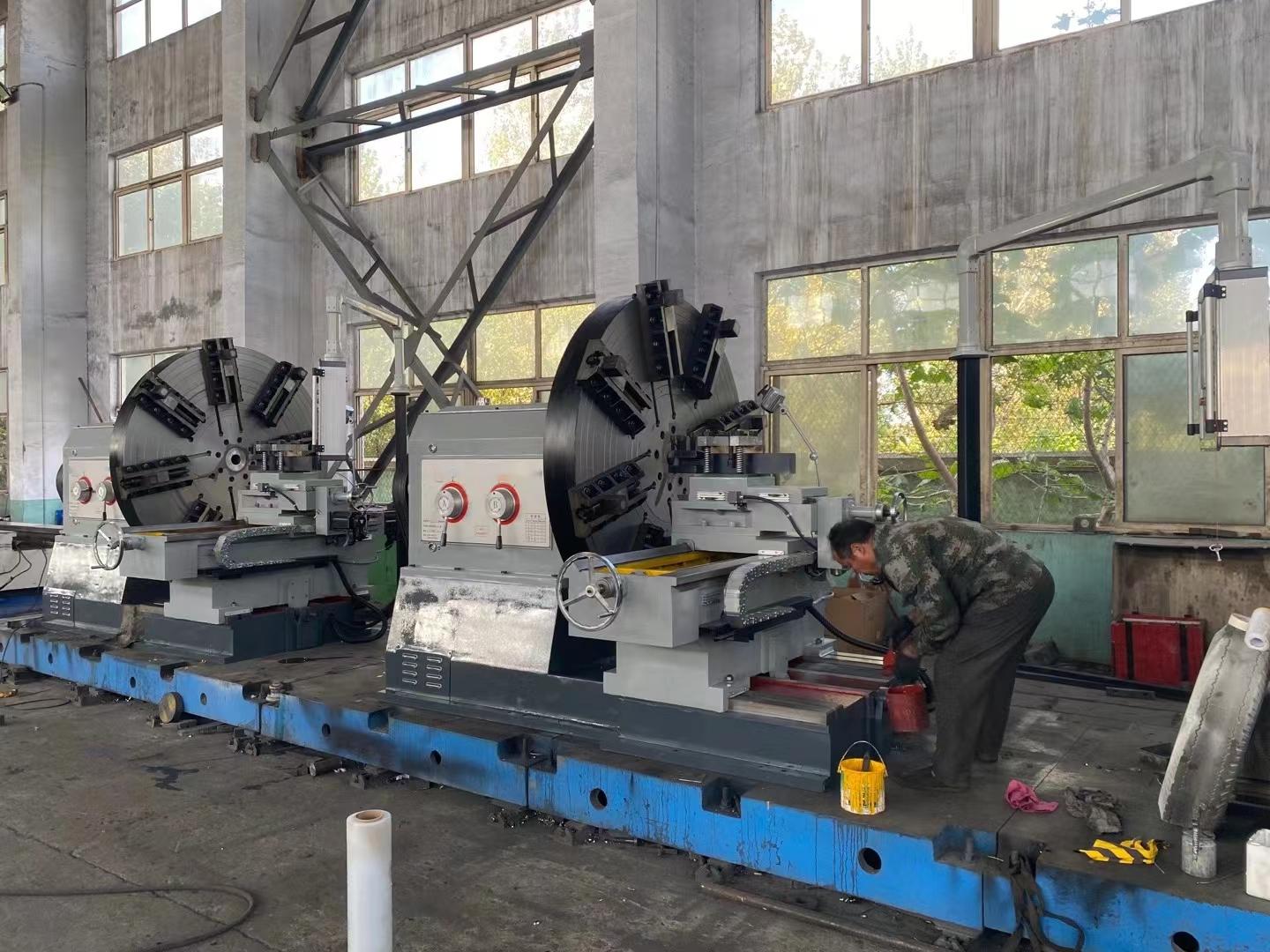

Face lathe WF2000
$28000
|
Description |
|
|
The face lathe is the joint structure of main shaft box and feeding box which is applicable to process the workpiece of large diameter and short length. The high speed steel and hard alloy cutting tools can be adopted for the processing of steel piece, cast iron piece, and light alloy piece. Also, it is able to finish the coarse and fine turning of external circle, inner hole, end surface, taper surface, cutting channel, and cutting etc. |
|
|
Model |
WF2000 |
|
Swing over bed |
2000mm |
|
Max. length of workpiece |
400mm |
|
Max. weight of workpiece |
2T |
|
Chuck diameter |
1600mm |
|
Range of spindle speed |
13～103RPM |
|
No. of speed step |
6 |
|
Max Cross Travel of carriage |
1000mm |
|
Max Longitudinal Travel of carriage |
450mm |
|
Power of main motor |
15KW |
