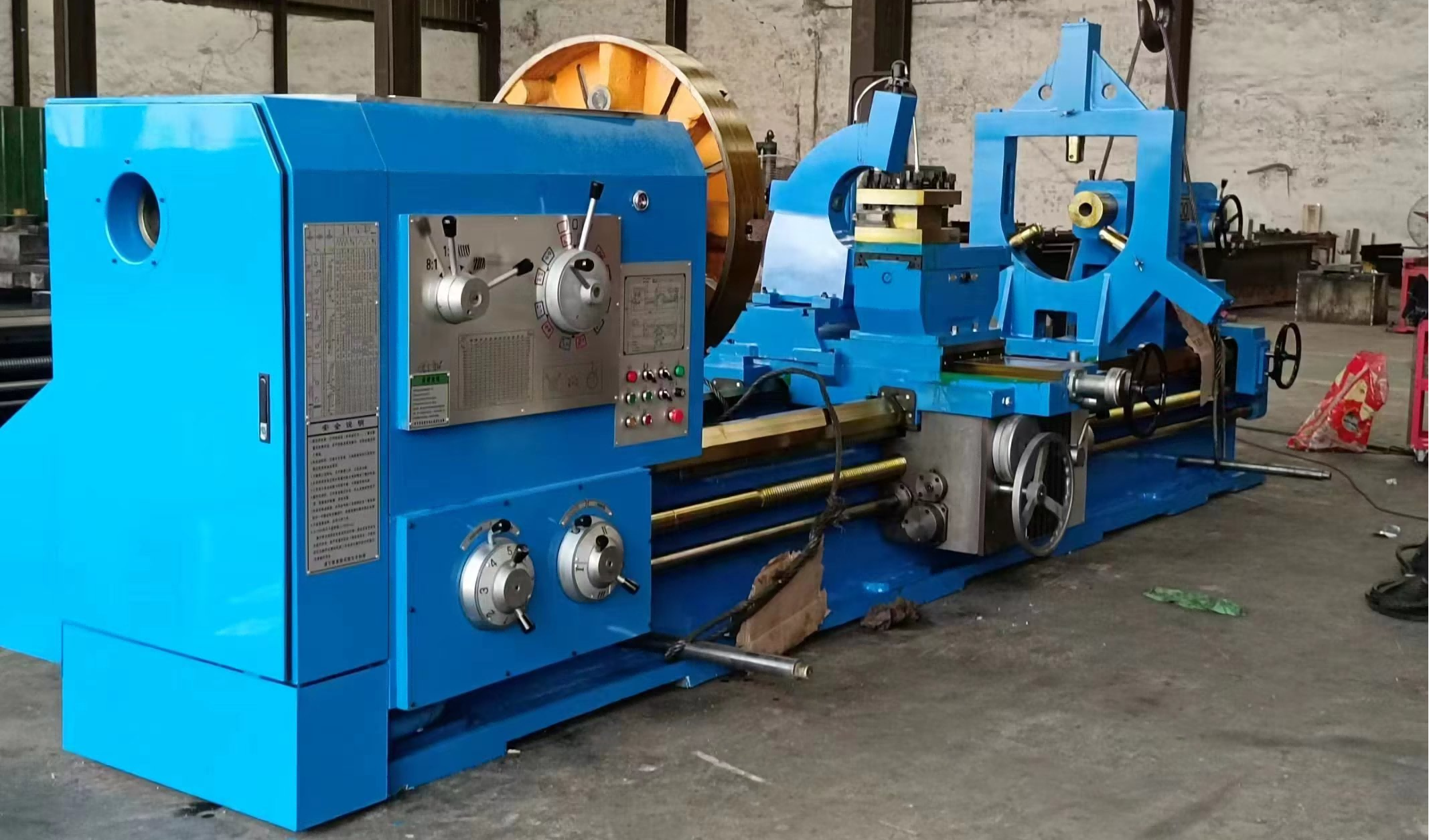

Heavy duty lathe CW61125X3000
$36000
|
Capacity |
Swing over bed |
￠ 1250mm |
|
|
Distance between centers |
3000mm |
|
|
Guideway width |
755m |
|
|
Max. swing over carriage |
￠ 865mm |
|
|
Max. turning length |
2800mm |
|
|
Max. support weight |
10T |
|
Feed system |
No. of longitudinal and cross |
56 kinds |
|
|
|
Longitudinal 0.1-12mm/r |
|
|
|
Cross 0.05-6mm/r |
|
|
Feed per revolution |
Top slide 0.025-3mm/r |
|
|
Metric thread grade/range |
43/1-120mm |
|
|
Inch thread grade/range |
29/28-3/8 |
|
|
Module thread grade/range |
45/0.5-60mm |
|
|
Dia. thread grade/range |
25/1-56mm |
|
Oil pump and lubrication |
Model |
CB-B10 |
|
|
Oil capactity |
12 l/min |
|
|
Working pressure |
12-14 kgs/cm |
|
|
Oil pump speed |
1500 r/min |
|
|
Oil pump driven belt model |
1200A/1300A/1372A |
|
|
|
|
|
|
|
|
|
Spindle |
Spindle bore |
￠ 104mm |
|
|
Spindle bore taper |
Metric ￠ 140 |
|
|
Range of spindle speed |
FWD 2-200 r/min |
|
|
|
REV 2.24-178 r/min |
|
Turret |
Distance from centerline to tool resting plane |
48mm |
|
|
Section of tool shank |
45*45mm |
|
|
Tool post swing angel |
±90° |
|
|
Max. travel of tool post |
1450-14950mm |
|
|
Max. travel of cross slide |
630mm |
|
|
Travel of tool post (per turn of dials) |
0.05mm |
|
|
Max. travel of top slide |
300mm |
|
|
Rapid traverse of tool post |
X axis 3470mm/min |
|
|
|
Z axis 1870mm/min |
|
|
|
Top slide 935mm/min |
|
Tailsotck |
Dia./travel of tailstock |
￠ 160*300mm |
|
|
Tailstock sleeve taper |
Morse 6# |
|
Power system |
Tailstock traverse |
±25 |
|
|
Main motor model and power |
Y180L-4 22KW |
|
|
Main drive belt model |
2134C、2235C、2540C |
|
|
Carriage rapid motor model and power |
JC02-21-2-1-1.5KW |
|
|
Cooling pump model and power |
JCB-45 0.15KW |
|
|
Cooling pump capacity |
45 l/m |
