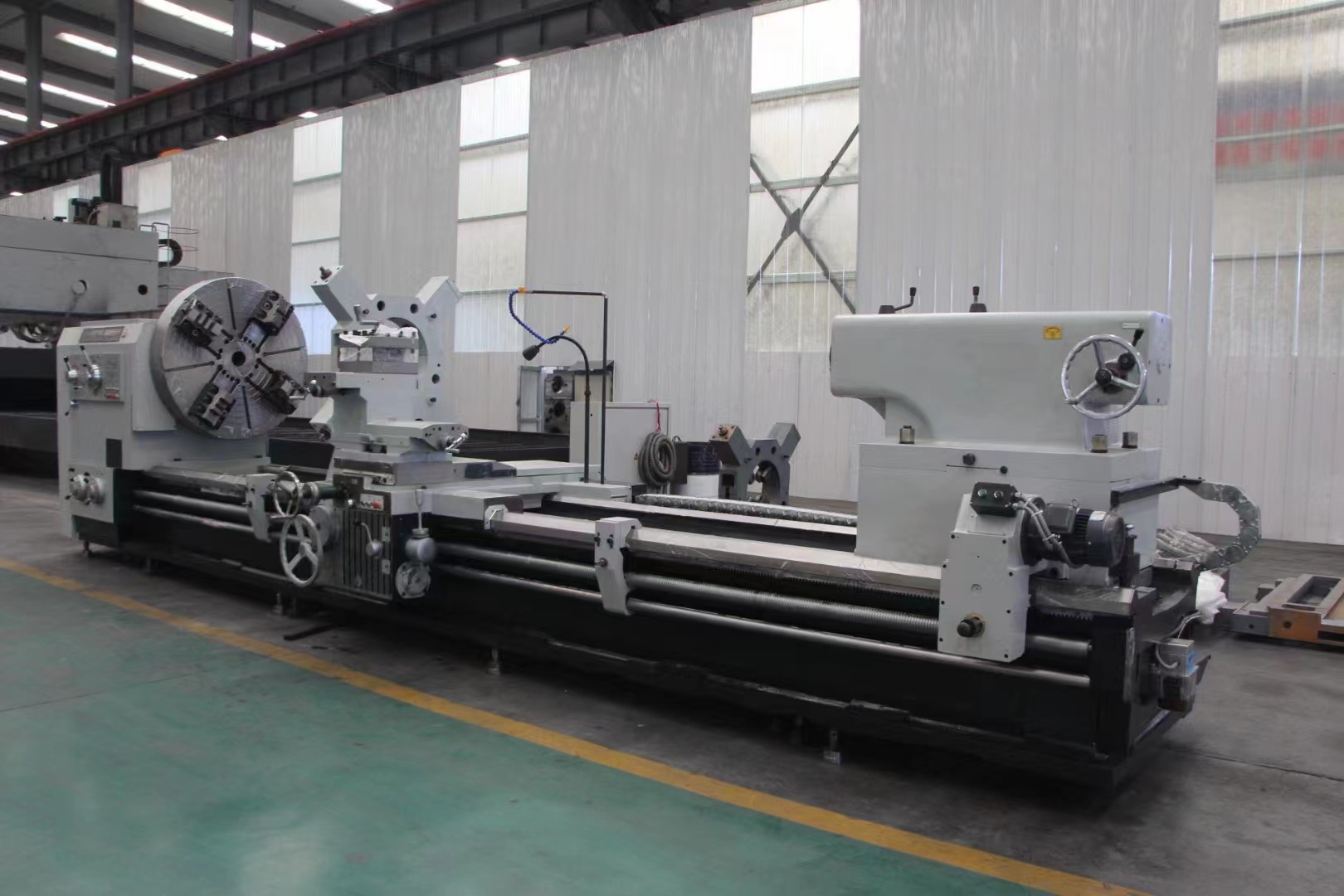

Heavy duty lathe CW61140X7000
$63000
|
Capacity |
Swing over bed |
1500mm |
|
Max. swing over carriage |
1050mm |
|
|
Distance between centers |
7000mm |
|
|
Max. turning length |
6800mm |
|
|
Guideway width |
1100mm |
|
|
Max. support weight |
10T |
|
|
Spindle |
Spindle nose |
A2-15 (8XM22) |
|
Spindle bore |
130 mm |
|
|
Spindle bore taper |
1:20/140 |
|
|
Range of spindle speed |
FWD 3.15-315 r/min |
|
|
REV 3.5-291 r/min |
||
|
No. of spindle speeds |
FWD :21, REV:12 |
|
|
Feed Motion |
No. of longitudinal and cross |
56 kinds |
|
Feed per revolution |
Longitudinal 0.1-12mm/r |
|
|
Cross 0.05-6mm/r |
||
|
Top slide 0.025-3mm/r |
||
|
No. and range of metric thread |
44;1-120mm |
|
|
No. and range of inch thread |
31;28-1/4 |
|
|
No. and range of module thread |
45;0.5-60mm |
|
|
No. and range of dial thread |
25;1/2-56DP |
|
|
Tool post and tailstock |
Distance from spindle and tool plane |
48mm |
|
Tool post swing angel |
±90° |
|
|
Max. travel of cross slide |
630mm(24'') |
|
|
Max. travel of top slide |
300mm |
|
|
Section of tool shank |
45*45mm |
|
|
Travel of tool post (per turn of dials) |
0.05mm |
|
|
Rapid traverse speed |
X axis 3470mm/min |
|
|
Z axis 1870mm/min |
||
|
Top slide 935mm/min |
||
|
Dia./travel of tailstock |
160mm(6'')*300(12'')mm |
|
|
Tailstock sleeve taper |
Morse 6# |
|
|
Others |
Main motor power |
22KW |
|
Main drive belt model |
10100x2150x2150 |
