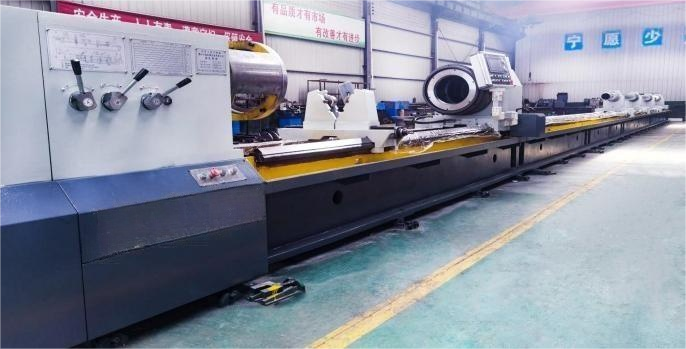

Deep hole drilling and boring machine VK2140
$55000
|
Parameter |
VK2140 |
|
Max. Drilling Diameter |
Φ400 mm |
|
Max. Boring Diameter |
Φ80 mm |
|
Largest Depth of Boring Holes |
2000 mm |
|
Workpiece Clamping Diameter Range |
Φ100 - Φ600 mm |
|
Height from Spindle Center to Bed |
450 mm |
|
Headstock Spindle Bore |
Φ85 mm |
|
Spindle Front Taper Hole |
Φ85 mm 1:20 |
|
Spindle Speed Range |
40-500 r/min |
|
Feed Speed Range (Infinite) |
5-1000 mm/min |
|
Carriage Rapid-Moving Speed |
3 m/min |
|
Power of Main Motor |
22 kW / 30 kW |
|
Hydraulic Pump Motor Power |
1.5 kW |
|
Carriage Rapid Motor Power |
3 kW |
|
Feed Motor Power |
5 kW |
|
Cooling Pump Motor Power |
5.5 kW |
|
Cooling System Rated Pressure |
0.36 MPa |
|
Cooling System Flow |
300 L/min |
|
Rated Working Pressure of Hydraulic System |
6.3 MPa |
|
Oil Controller Maximum Axial Force |
68 kN |
|
Maximum Predetermined Effort of Oil Controller to Workpiece |
20 kN |
|
Length of the Illuminator Tray |
1000 mm |
