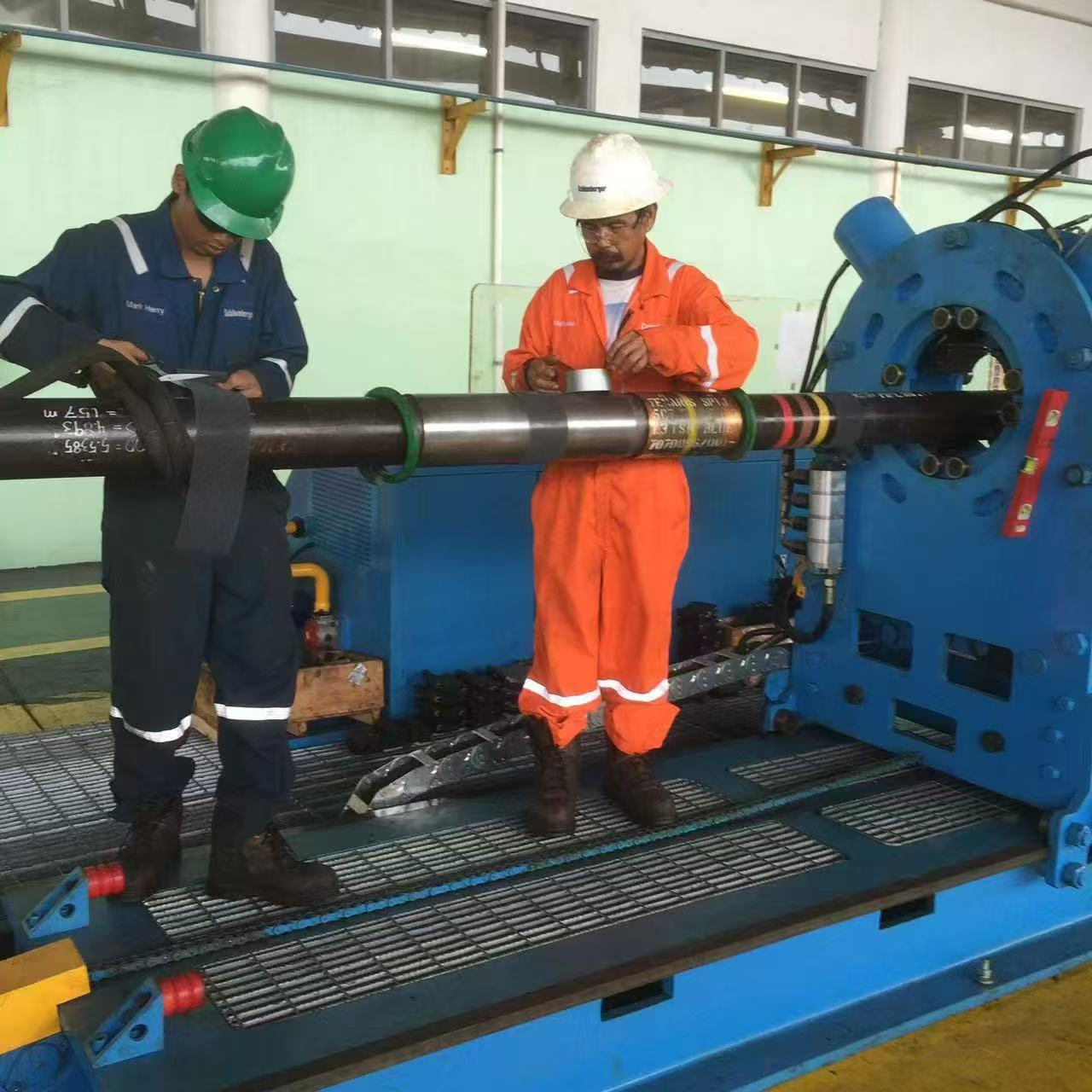

20' Bucking Machine 360 degree full roation
$110000
|
Description描述 |
Technical Specification技术参数 |
Qty |
Unit |
|||
|
Hydraulic power system ( Oil tankcapacity 600 L) 液压动力系统 (油箱容积:600L)
|
Servo Motor is 22KW, required voltage is 380V, frequency is 50HZ 伺服电机22KW，电压380V，频率50HZ/节能+噪音低 |
1 |
Set套 |
|||
|
|
Double gear pump 双联齿轮泵 |
|
|
|||
|
|
MAX. Pressure 4,560PSi 最大压力31.5MPa |
|
|
|||
|
|
Hydraulic operation console dimension 51″*35″*42″ 操作台尺寸: 1250*890*1066mm |
|
|
|||
|
|
Oil level reminder function具备缺油（声光）报警功能 |
|
|
|||
|
|
Hydraulic oil cooling air-cooled radiators/automatic temperature control 液压油冷却：风冷散热器/自动温控 |
|
|
|||
|
|
Structure: Closed 结构：封闭式 |
|
|
|||
|
Make up/ break out main engine 主机 |
Headstock 主/头钳 |
Applicable pipe range：2-1/2″-20″(No need to replace the clamp teeth) 夹紧通径：Φ63 - 508mm（无需更换钳牙） |
1 |
Set套 |
||
|
|
|
Six clamping cylinders, synchronization accuracy 98% 六个夹紧油缸，同步精度98% |
|
|
||
|
|
|
Closed structure 封闭式结构 |
|
|
||
|
|
|
Markless jaws for high-quality threaded connections of tubing and casing 无痕钳牙，用于油管和套管的优质螺纹连接 |
|
|
||
|
|
|
Conventional jaws, used for mud motors, jars, drill pipes, etc. 常规钳牙，用于泥浆马达、震击器、钻杆等 |
|
|
||
|
|
|
Can be moved 可移动 |
|
|
||
|
|
|
Rroller jack 滚轮千斤顶 |
1.QTY 1 数量1 2.Move in sync with headstock 跟随头钳同步移动 |
|
|
|
|
|
Tailstock 备/尾钳 |
Applicable pipe range：2-1/2″-20″(No need to replace the clamp teeth) 夹紧通径：Φ63 - 508mm（无需更换钳牙） |
1 |
Set套 |
||
|
|
|
Six clamping cylinders, synchronization accuracy 98% 六个夹紧油缸，同步精度98% |
|
|
||
|
|
|
No mark jaws and conventional jaws 无痕钳牙和常规钳牙 |
|
|
||
|
|
|
Continuous rotation 360°/Speed 0.5-5 rpm 连续旋转360°/转速0.5-5 rpm |
|
|
||
|
|
|
Torque 500～90,000 ft-lbs 扭矩范围500～90,000 ft-lbs |
|
|
||
|
|
|
Torque accuracy ±0.5% 扭矩精准度 ±0.5% |
|
|
||
|
|
Carriageway行车道 |
Base Length 19.7′ 长度：6m |
|
|
||
|
控制台 Console
|
English interface英文界面 |
|||||
|
|
19″ touch screen monitor, keyboard, mouse, stand 触摸屏19″显示器，键盘、鼠标、支架 |
|||||
|
|
System touch screen computer 10" 系统用触摸屏计算机10″ |
|||||
|
|
Load Cells 称重 传感器 |
The computer collects the tension or pressure of the weighing sensor and calculates the accurate torque value based on the length of the lever arm. 计算机采集称重传感器的拉力和压力，并根据力臂计算出精准扭矩值。 |
||||
|
|
One interface工作界面1个 |
Operator, pipe number and report name can be entered. 可输入操作者、管子编号和报告名称 |
||||
|
|
|
In the drop-down list, you can select the pipe specification, material, and premium thread type, and the system will automatically select all other parameters of the thread. 可在下拉表中调取管子规格、材质、优质螺纹类型，然后系统会自动填入螺纹的所有参数。 |
||||
|
|
|
The pipe parameters in the table include outer diameter, grade, thread type, head clamping pressure, tail clamping pressure, max torque, optimal torque, mini torque, max shoulder torque, mini shoulder torque, mini slope factor, and maxi slope factor. 下拉表中的管子参数，包括管子尺寸、等级、螺纹类型、头钳夹紧压力、尾钳夹紧压力、最大扭矩、最佳扭矩、最小扭矩、最大台肩扭矩、最小台肩扭矩、最小斜率系数、最大斜率系数。 |
||||
|
|
|
The pipe parameters in the table need to be filled in manually, added, modified and deleted according to the thread parameter requirements, and the data can be automatically classified and arranged. 表格中的管子参数，需要人工填写，根据螺纹参数要求，添加、修改和删除，数据可自动分类和排列。 |
||||
|
|
|
In the curve and interface table, the parameter values of the thread can be seen in real time. 在曲线和界面表格中，可实时看到螺纹的参数数值。 |
||||
|
|
|
Displays maximum torque, optimum torque, minimum torque, and final torque 显示最大扭矩、最佳扭矩、最小扭矩、最终扭矩 |
||||
|
|
|
Displays the maximum shoulder torque, minimum shoulder torque, and final shoulder torque. 显示最大台肩扭矩、最小台肩扭矩、最终台肩扭矩 |
||||
|
|
|
Display the final turns, shoulder turns, and delta turns. 显示最终圈数、台肩圈数、增量圈数 |
||||
|
|
|
Automatically generate torque and turns curves. 自动生成扭矩和圈数曲线 |
||||
|
|
|
Photoelectric rotary encoder, with an accuracy of 0.0001 turn. Generates a curve of speed and number of turns光电旋转编码器精度0.00001，生成转速和圈数曲线 |
||||
|
|
|
Automatic calculation delta torque, delta turns, slope factor, and display. 自动计算增量扭矩、增量圈数、斜率系数，并显示 |
||||
|
|
|
All original data are automatically saved in disk D.所有原始数据，均保存在D盘 |
||||
|
|
PDF Report 报告PDF |
PDF report including tables and graphs. PDF报告包括表格和曲线 |
||||
|
|
|
After the pipe connection is completed and Save is clicked, a PDF report is automatically generated and popped up for immediate printing. 管子连接完成并点击保存后，自动生成PDF报告并弹出显示，可立即打印。 |
||||
|
|
|
The PDF report automatically generates a serial number and is saved in the root directory of drive D. can be modified and copied. PDF报告自动生成序列号，保存在D盘根目录，可修改名称，可拷贝。 |
||||
|
|
Control 控制 |
Select Manual: Electric operating handle, proportional control 选择手动：电操作手柄，比例控制 |
||||
|
|
|
High-quality threads, choose automatic: press a button, the software automatically completes the make-up, and generates a report. 优质螺纹，选择自动：按动按钮，软件自动完成上扣，并生成报告。 |
||||
|
|
|
When the torque reaches 80% of the minimum shoulder torque, the software immediately reduces the spindle speed to 10% (10-40% can be selected) to prevent torque overload and to make torque acquisition more accurate. 当扭矩达到最小台肩扭矩的80%时，软件将主轴转速立即降低到10%（可以选择10-40%），目的是防止扭矩过载，同时扭矩采集更加准确。 |
||||
|
|
|
Final torque does not decay. 保证最终扭矩不衰减 |
||||
|
|
USB port, can copy the report USB接口，可将报告拷贝 |
|||||
|
|
Safe and transparent shield,UL bulletproof level 1 安全可视防护罩，UL防弹一级 |
|||||
|
|
Scram button急停按钮 |
|||||
|
|
Noise level ＜80 dB (A) 控制台噪音等级 60 dB (A) |
|||||
|
|
Hydraulic pipeline bridge 液压管线桥 |
|||||
|
Cylinder Synchronizer 同步分流马达 |
The standard 标配 |
Origin Shanghai, China 产地：上海 |
||||
|
Cylinder seal油缸密封 |
The standard标配 |
Taiwan台湾 |
||||
|
Connection seal连接密封 |
The standard标配 |
Taper sealing锥度密封 |
||||
|
Oil pipe油管 |
The standard标配 |
Qingdao, China 青岛第六橡胶厂 |
||||
|
Oil pipe TANK bracket 油管托架 |
The standard 标配 |
Metal Material 金属材质（俗称坦克链） |
||||
|
Torque meter 扭矩仪系统 |
The standard 标配 |
Measured torque, not hydraulic oil pressure conversion. 实测扭矩，非液压油压力换算 |
||||
|
Computer 计算机 |
The standard标配 |
Industrial computers and software 工控机及软件 |
||||
|
Printer打印机 |
The standard标配 |
Laser printer, made in China激光，中国制造 |
||||
|
设备总重量Weight |
155,000kg 15.5吨 |
|||||
