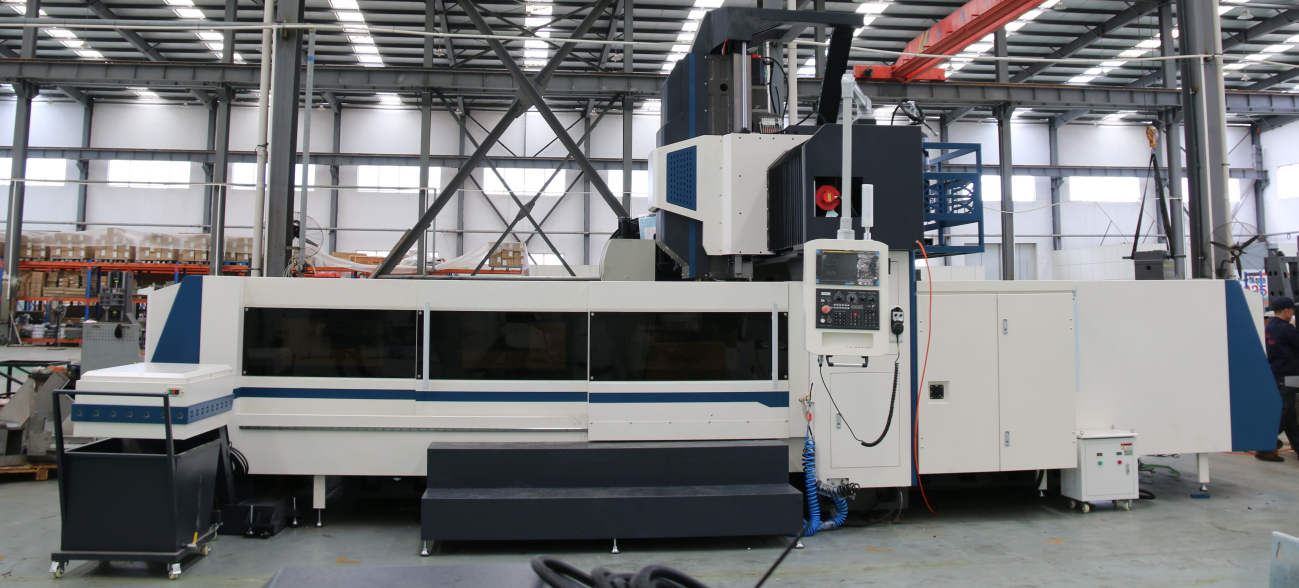

Gantry Machining Center GMC3018
$94800
The GMC3018 is ideal for industries requiring precision machining of large and heavy components, such as:
- Aerospace
- Automotive
- Mold and die manufacturing
- Energy and power equipment
- General industrial applications
| Specifications | GMC3018 |
| Table size (L×W) | 1600×3200 mm |
| X-axis travel | 3000 mm |
| Y-axis travel | 1900 mm |
| Z-axis travel | 800 mm |
| Gantry width/height | W: 1900 / H: 1080 mm |
| Table load | 6.5 t |
| Distance spindle to table | 200 ~ 1000 mm |
| T-slot (number-width-pitch) | 9-22×180 mm |
| Spindle taper | BT50/190 |
| Spindle speed | 6000 r/min |
| Rapid traverse speed | 15 m/min |
| Cutting feed speed | 10 m/min |
| Main motor power | 15/18.5 kW |
| Tool magazine | Arm24 |
| Positioning accuracy | X/Y: ±0.0075 mm, Z: ±0.015 mm |
| Repeat positioning accuracy | ±0.005 mm |
| Overall dimensions (L×W×H) | 9200×4700×4300 mm |
| Machine weight (about) | 26 t |
