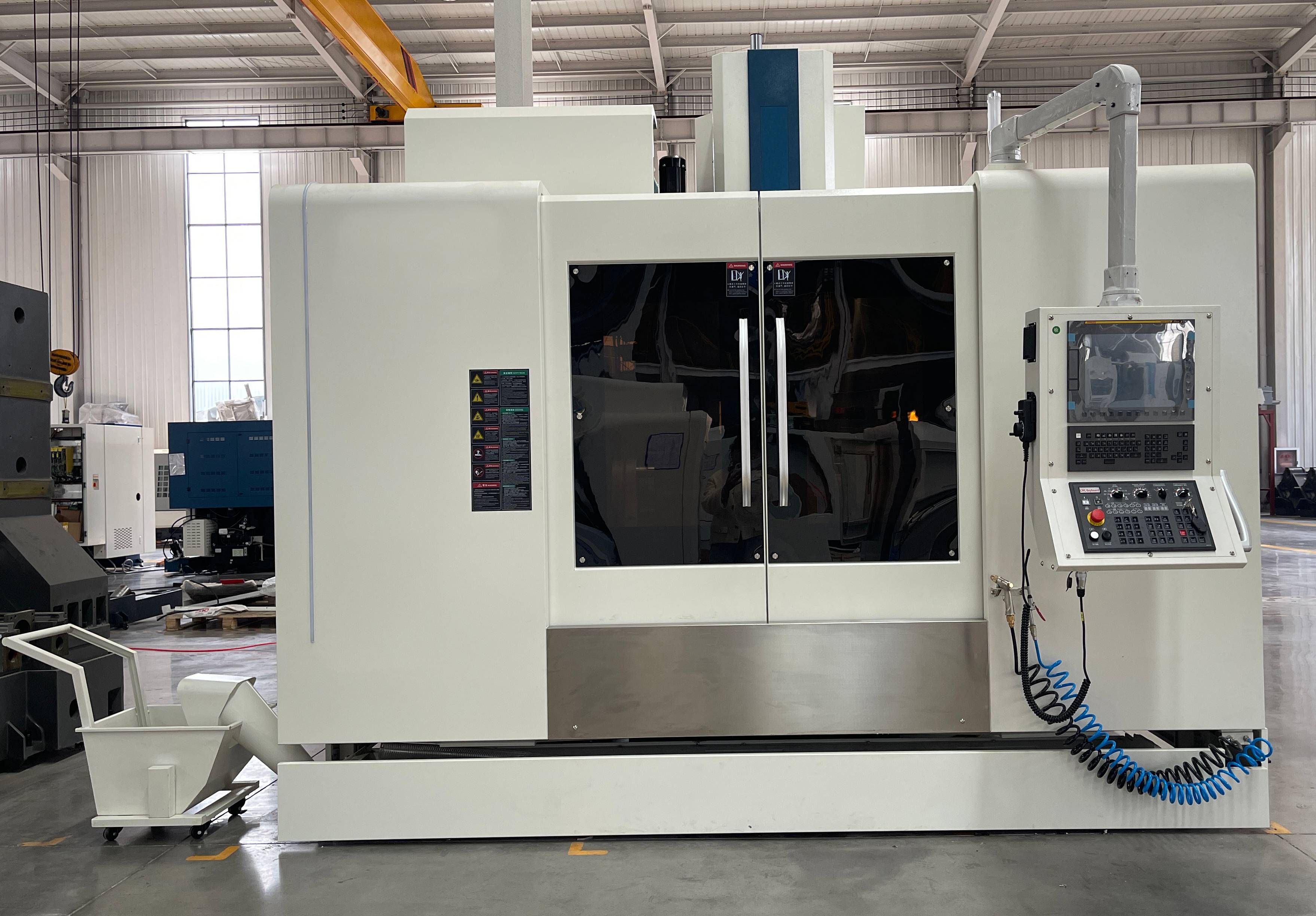

CNC Vertical Machining Center VMC1270
$38000
|
Machine Model |
Unit |
VMC1270 |
|
|
Control system |
|
Mitsusibishi M80A r FANUC 0i MF（5） |
|
|
Worktable |
Table size |
mm |
1400*600 |
|
Maximum load capacity |
Kg |
1000 |
|
|
Travel |
X axis travel |
mm |
1200 |
|
Y axis travel |
mm |
700 |
|
|
Z axis travel |
mm |
700 |
|
|
Spindle |
Spindle speed |
r/min |
12000 |
|
Main motor |
Kw |
11/15 |
|
|
Spindle face to table surface |
mm |
130-830 |
|
|
Spindle center to column guide |
mm |
750 |
|
|
Taper |
|
BT40/150 |
|
|
X/Y/Z axis motor torque |
Nm |
18/18/28 |
|
|
X/Y/Z axis motor connection mode |
|
direct type |
|
|
Feed |
X axis rapid traverse speed |
m/min |
24 |
|
Y axis rapid traverse speed |
m/min |
24 |
|
|
Z axis rapid traverse speed |
m/min |
24 |
|
|
Max. cutting feed |
mm/min |
10000 |
|
|
Tool magazine capacity |
|
pcs |
24 |
|
Tool change time (T-T) |
|
s |
2 |
|
Positioning accuracy |
mm |
±0.01 |
|
|
Repeat Positioning Accuracy |
mm |
±0.006 |
|
|
Net weight |
Kg |
7000 |
|
|
Machine size |
mm |
3600*2700*2900 |
|
