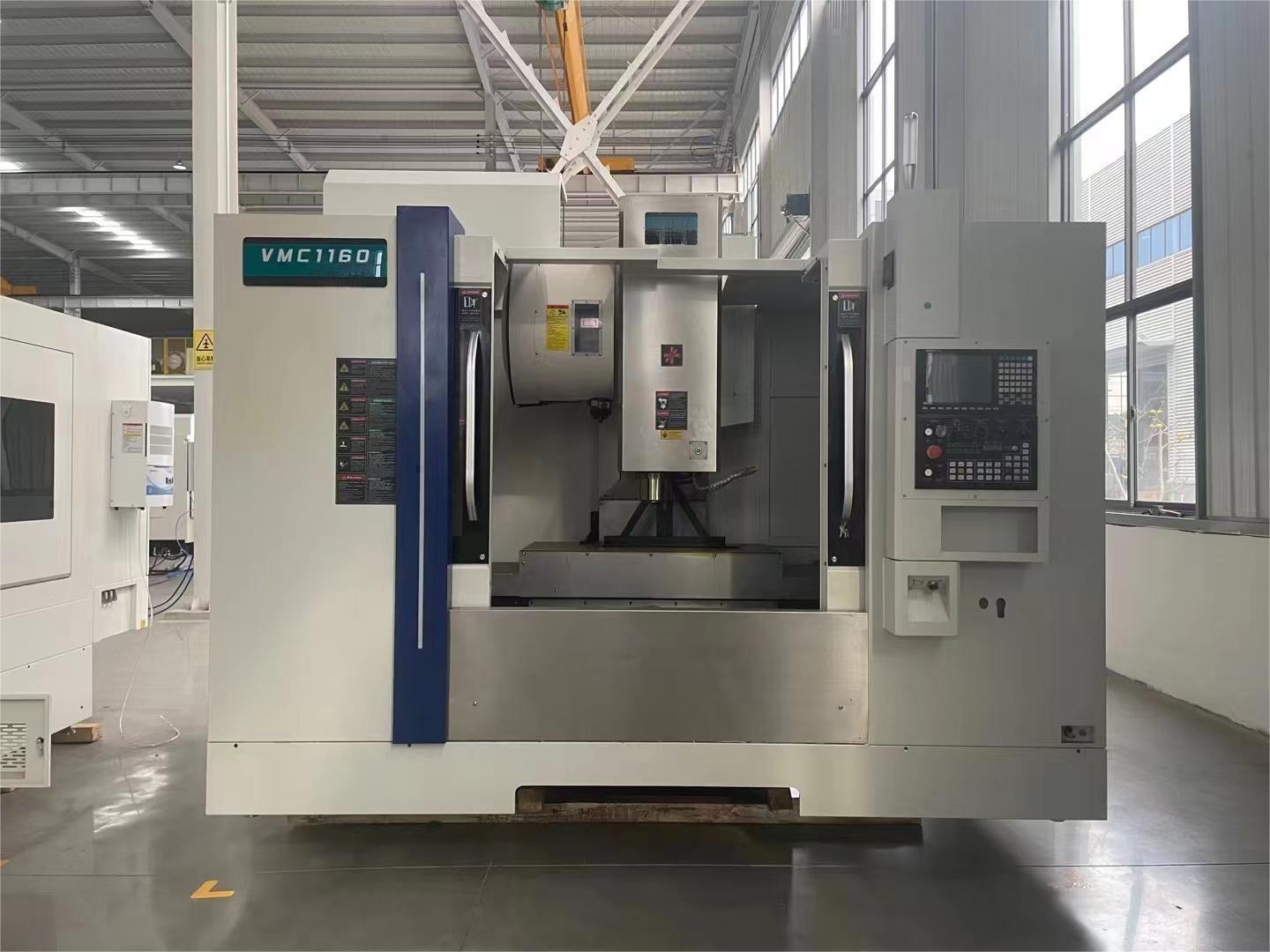

CNC Vertical Machining Center VMC1160
$33500
The VMC 1160 is a Vertical Machining Center with larger dimensions and capabilities, making it ideal for a variety of industrial applications requiring precision, efficiency, and reliability.
Key Applications
1. Automotive Manufacturing
- Engine Components: Cylinder heads, blocks, and housings.
- Transmission Parts: Casings, gears, and shafts.
- Suspension Systems: Machining of control arms and knuckles.
2. Aerospace Industry
- Structural Components: Precision machining of aluminum and titanium parts.
- Engine Parts: Machining of turbine blades, casings, and complex profiles.
- Landing Gear: High-strength steel and composite parts.
3. Mold and Die Industry
- Injection Molds: Machining intricate cavities for plastic molding.
- Press Dies: For sheet metal forming and stamping.
- Casting Molds: Precision cutting for foundry applications.
4. Medical Equipment
- Surgical Tools: High-precision instruments requiring fine tolerances.
- Implants: Prosthetic devices made from biocompatible materials.
- Diagnostic Equipment: Housings and precision components.
5. Oil and Gas Industry
- Pipe Fittings: Machining threaded and flanged connections.
- Valve Components: High-precision valve seats and bodies.
- Drilling Equipment: Components for oilfield machinery.
6. General Engineering and Fabrication
- Machine Components: Brackets, mounts, and housings.
- Custom Prototypes: One-off parts for testing and development.
- Large Workpieces: Excellent for larger parts due to its spacious worktable.
|
Machine Model |
Unit |
VMC1160 |
|
|
Control system |
|
Mitsusibishi M80A r FANUC 0i MF（5） |
|
|
Worktable |
Table size |
mm |
1200*600 |
|
|
Maximum load capacity |
Kg |
800 |
|
Travel |
X axis travel |
mm |
1100 |
|
|
Y axis travel |
mm |
600 |
|
|
Z axis travel |
mm |
600 |
|
Spindle |
Spindle speed |
r/min |
12000 |
|
|
Main motor |
Kw |
11/15 |
|
|
Spindle face to table surface |
mm |
120-720 |
|
|
Spindle center to column guide |
mm |
672 |
|
|
Taper |
|
BT40/150 |
|
X/Y/Z axis motor torque |
Nm |
18/18/28 |
|
|
X/Y/Z axis motor connection mode |
|
direct type |
|
|
Feed |
X axis rapid traverse speed |
m/min |
36 |
|
|
Y axis rapid traverse speed |
m/min |
36 |
|
|
Z axis rapid traverse speed |
m/min |
36 |
|
Max. cutting feed |
mm/min |
10000 |
|
|
Tool magazine capacity |
|
pcs |
24 |
|
Tool change time (T-T) |
|
s |
2 |
|
Positioning accuracy |
mm |
0.008 |
|
|
Repeat Positioning Accuracy |
mm |
0.005 |
|
|
Net weight |
Kg |
6000 |
|
|
Machine size |
mm |
3100*2500*2800 |
|
