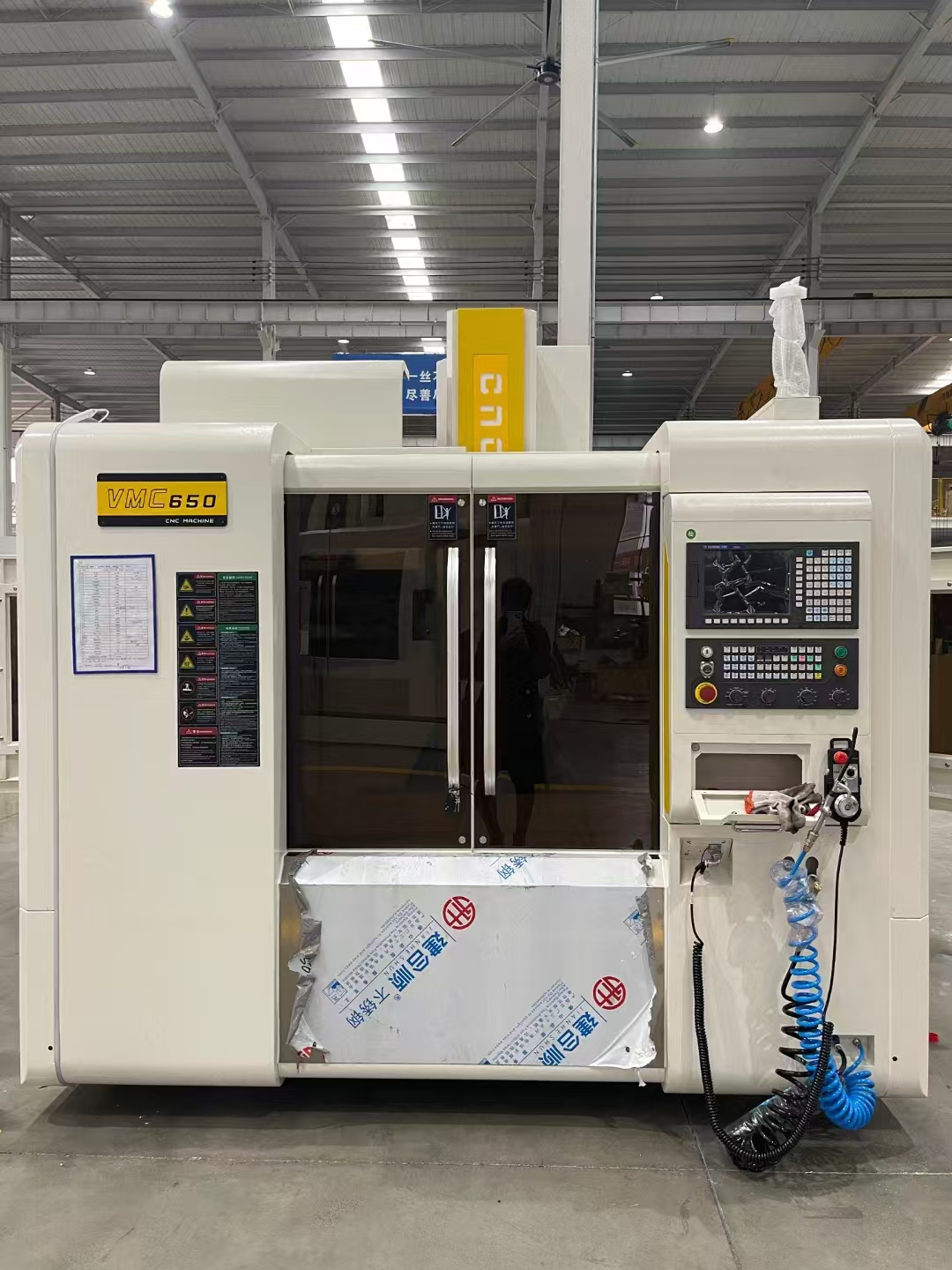

CNC Vertical machining center VMC650
$24900
Vertical Machining Center (VMC) Model VMC650 with a worktable size of 650mm. This machine is typically used for precision machining tasks such as milling, drilling, boring, and tapping, and is designed for high-performance operations.
|
Machine Model |
Unit |
VMC650 |
|
|
Control system |
|
FANUC 0i MF（5） |
|
|
Worktable |
Table size |
mm |
900*400 |
|
Maximum load capacity |
Kg |
400 |
|
|
Travel |
X axis travel |
mm |
650 |
|
Y axis travel |
mm |
400 |
|
|
Z axis travel |
mm |
450 |
|
|
Spindle |
Spindle speed |
r/min |
12000 |
|
Main motor |
Kw |
5.5/7.5 |
|
|
Spindle face to table surface |
mm |
100-600 |
|
|
Spindle center to column guide |
mm |
460 |
|
|
Taper |
|
BT40/150 |
|
|
X/Y/Z axis motor torque |
Nm |
8/8/18 |
|
|
X/Y/Z axis motor connection mode |
|
direct type |
|
|
Feed |
X axis rapid traverse speed |
m/min |
24 |
|
Y axis rapid traverse speed |
m/min |
24 |
|
|
Z axis rapid traverse speed |
m/min |
24 |
|
|
Max. cutting feed |
mm/min |
10000 |
|
|
Tool magazine capacity |
|
|
24 |
|
Tool change time (T-T) |
|
|
2 |
|
Positioning accuracy |
mm |
±0.008 |
|
|
Repeat Positioning Accuracy |
mm |
±0.005 |
|
|
Net weight |
Kg |
5200 |
|
|
Machine size |
mm |
2300*1950*2450 |
|
