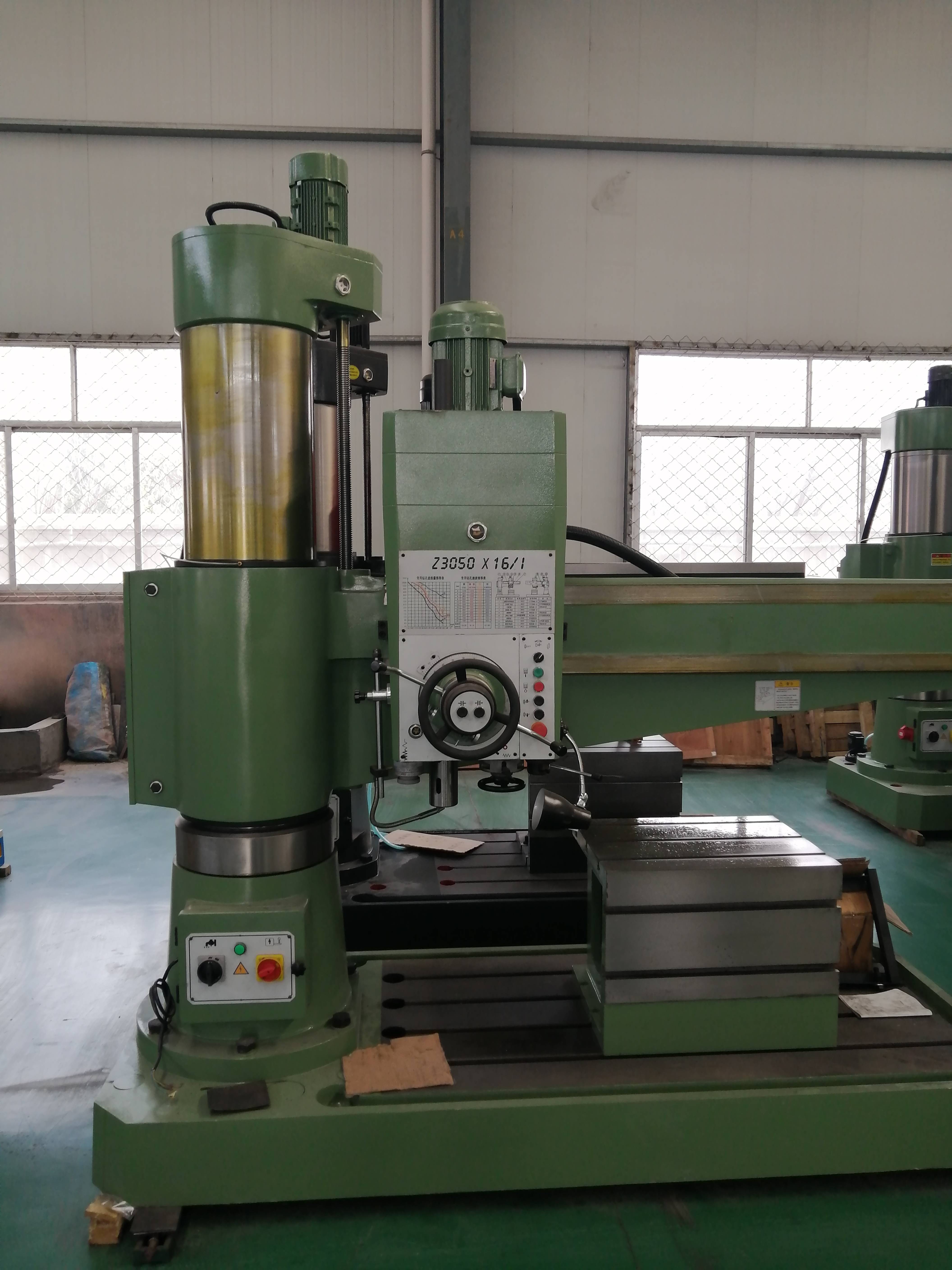

Hydraulic Radial Drilling Machine Z3050X16
$9000
| SPECIFICATIONS | Z3050×16 |
| Max.drilling dia (mm) | 50 |
| Distance from spindle nose to table surface(mm) | 320-1220 |
| Distance from spindle axis to column surface (mm) | 350-1600 |
| Spindle travel (mm) | 315 |
| Spindle taper(MT) | 5 |
| Spindle speeds range (r.p.m) | 20-200/200-2000 |
| Spindle speed steps | 2 steps (variable speed) |
| Spindle feeding range(mm/min ) | 13-127 |
| Spindle feeding steps | Variable speed |
| Main motor power (kw) | 4 |
| Movements motor power (kw) | 1.1 |
| Weight (kg) | 3800 |
| Overall dimensions (mm) | 2677×1000×2650 |
