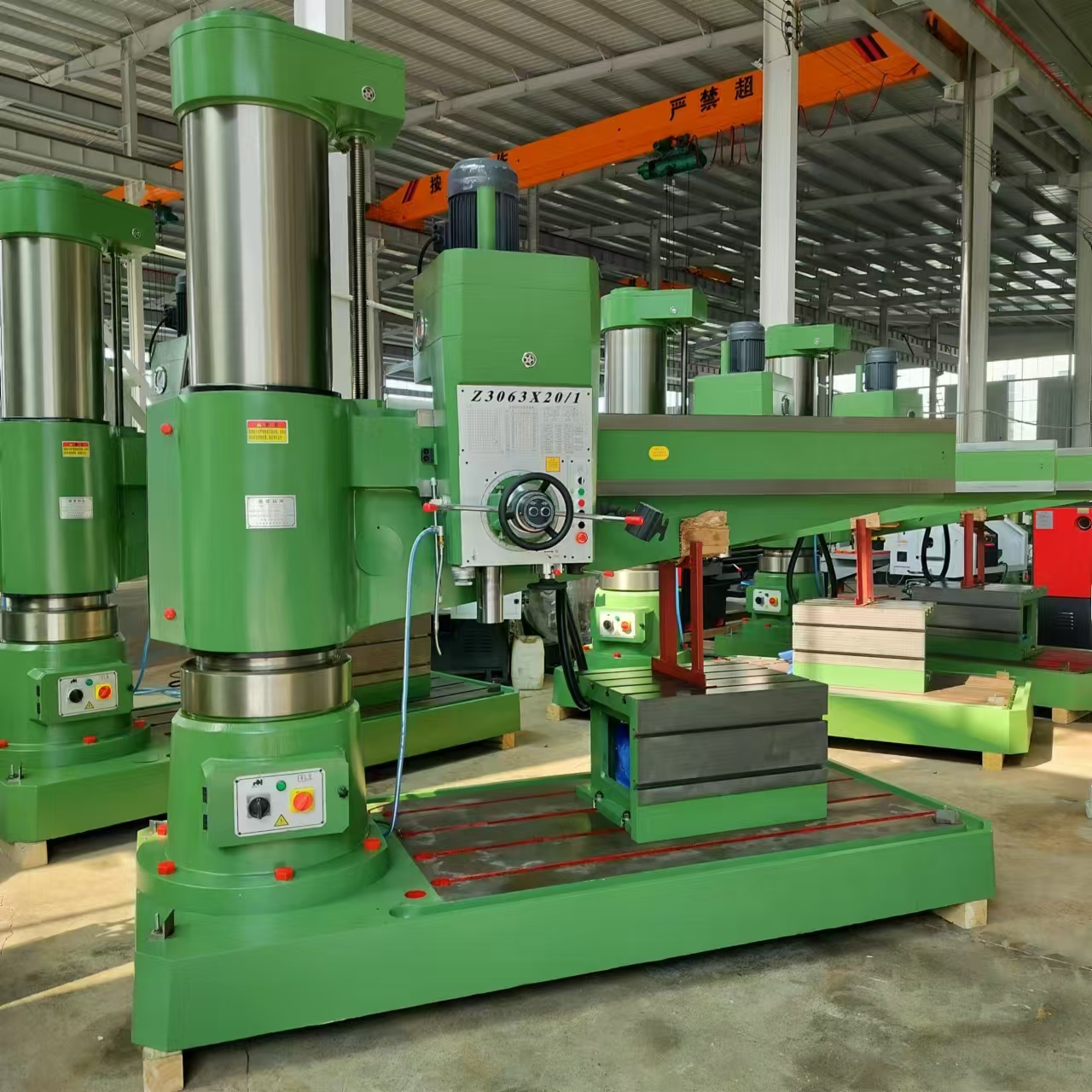

Hydraulic Radial Drilling Machine Z3063X20
$14500
- hydraulic clamping
- Hydraulic transmission
- Hydraulic pre-selection
- Electrical machinery double insurance
| Specifications | Z3063x20 |
| Max. drilling diameter | Φ63 |
| Distance from spindle nose to table surface | 220-1300 |
| Distance between spindle axis and column surface | 430-1900 |
| Spindle travel | 400 |
| Spindle taper | Morse No. 5 |
| Spindle speeds range | 16-1600(16 steps) |
| Spindle feeding range | 0.04-3.2(16 steps) |
| Rocker rotary angle | +/-90° |
| Main motor power | 5.5 |
| Movements motor power | 1.5 |
| N/W | 6500 |
| Overall dimension (L*W*H)) | 3080X1250X3205 |
