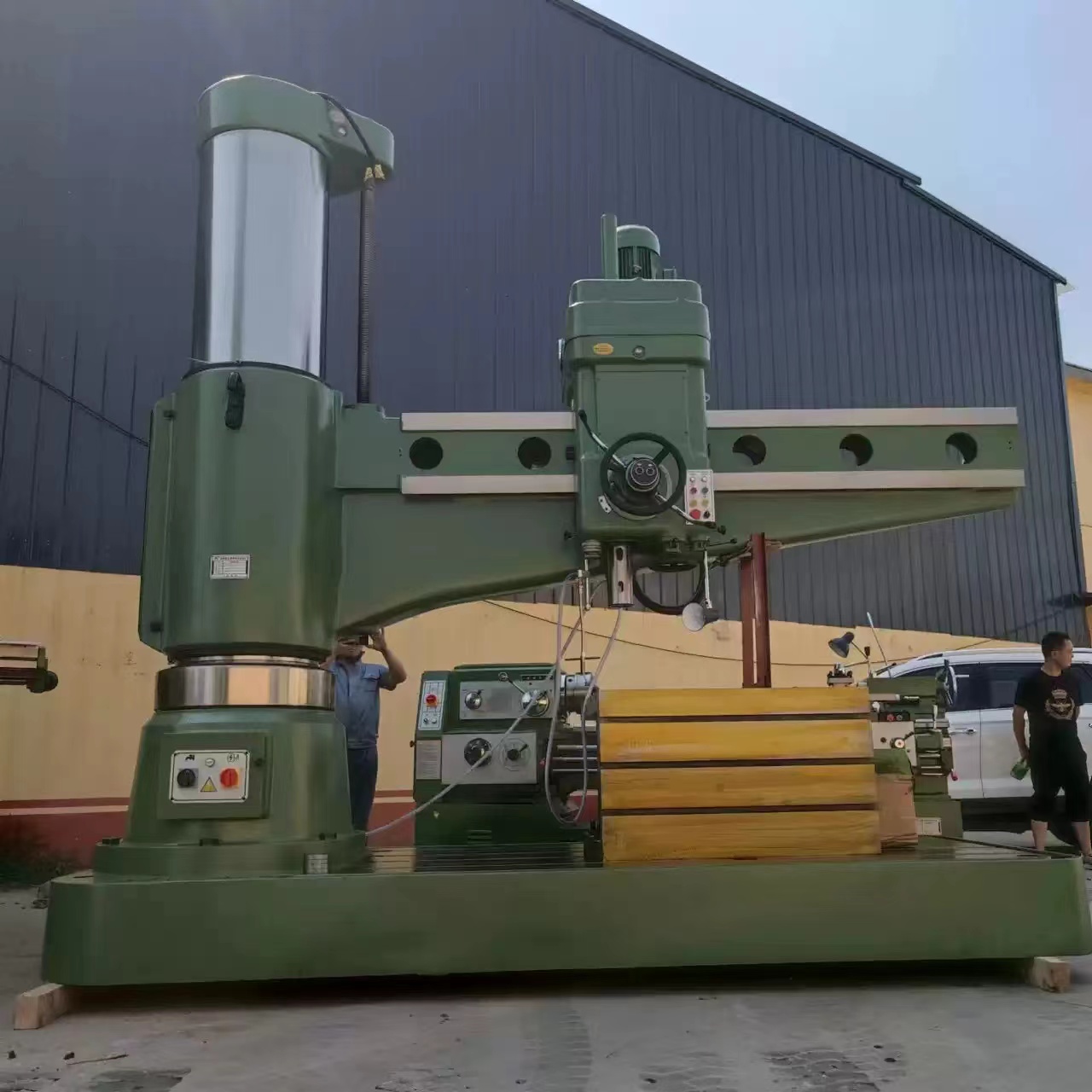

Hydraulic Radial drilling machine Z30100X31
$42500
|
Model |
Z30100X31 |
|
Max.drilling capacity |
100mm |
|
Distance spindle axis to column generating line |
570-3150mm |
|
Spindle taper |
MT6 |
|
Spindle travel |
500mm |
|
Spindle speeds range |
8-1000r/min |
|
Spindle speeds series |
16 |
|
Range of Spindle feeds |
0.04-3.2mm/r |
|
Mpindle Spindle feeds |
16 |
|
Distance spindle nose to working surface of base |
750-2500mm |
|
Power of Main motor |
15kw |
|
Machine weight |
20000kgs |
|
Packing dimension |
4650X1630X4425mm |
