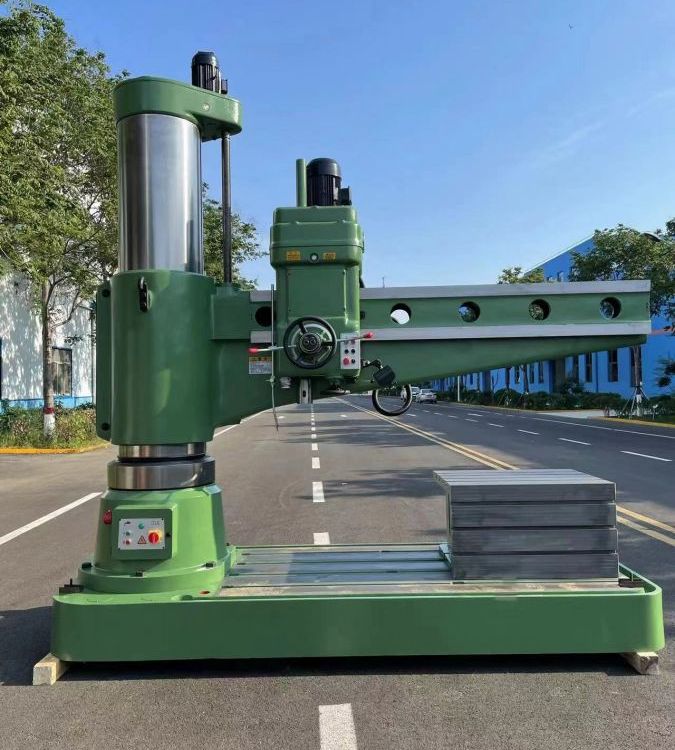

Hydraulic Radial drilling machine Z3080X25
$21000
|
Model |
Z3080X25 |
|
Max.drilling capacity |
80mm |
|
Distance spindle axis to column generating line |
500-2500mm |
|
Diameter of column |
550mm |
|
Spindle taper |
MT6 |
|
Spindle travel |
450mm |
|
Spindle speeds range |
16-1250r/min |
|
Spindle speeds series |
16 |
|
Range of Spindle feeds |
0.04-3.2mm/r |
|
Mpindle Spindle feeds |
16 |
|
Distance spindle nose to working surface of base |
550-2000mm |
|
Dimension of worktable |
1000X800X560mm |
|
Dimension of base |
3530X1400X300mm |
|
Overall size |
3730X1400X3790mm |
|
Power of Main motor |
7.5kw |
|
G.W/NW |
10450/10000kgs |
|
Packing dimension |
3870X1620X2230mm |
