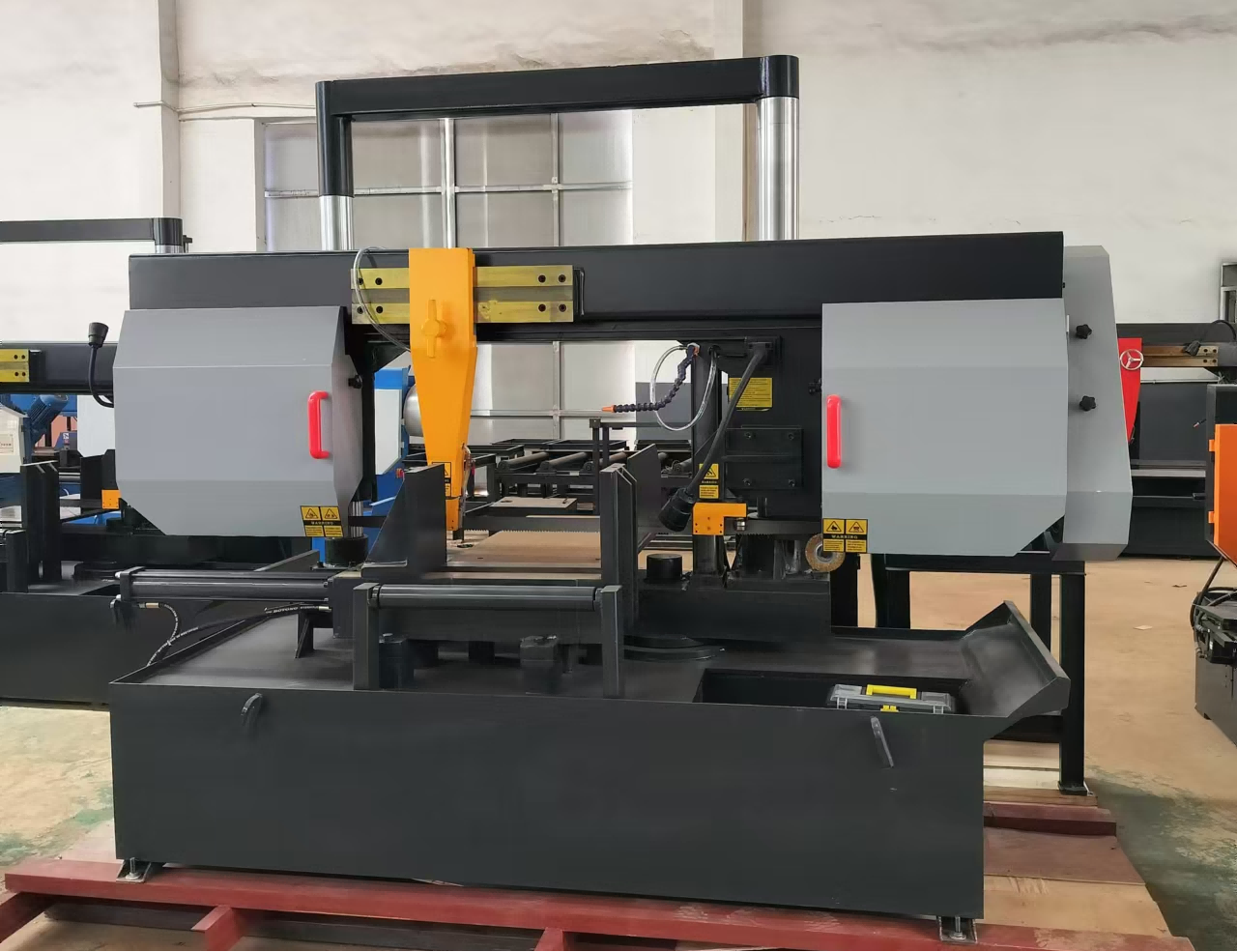

Bandsaw Machine G4240

$4300

The machine adopts double column structure with vertical lifting and lowering.

Adoption of energy efficient controller with simple design of circuit board and excellent space of electrical box not only ensures low failure rate of the machine, but also facilitates maintenance and saves space.

Cutting speed is hydraulically controlled with stepless variable speed.

Suitable for batch material sawing.



Main technical parameters

G4240 Sawing Machine

Maximum cutting mm

400 x 400

Saw belt specification mm

4360 x 41 x 1.3

Feed speed adjustment

hydraulically

Saw belt wheel speed m/min

27, 45, 69

Work clamping method

hydraulically

Main motor power kw

4

Hydraulic motor power

0.75

Outer dimensions mm

2380X1200X1500
