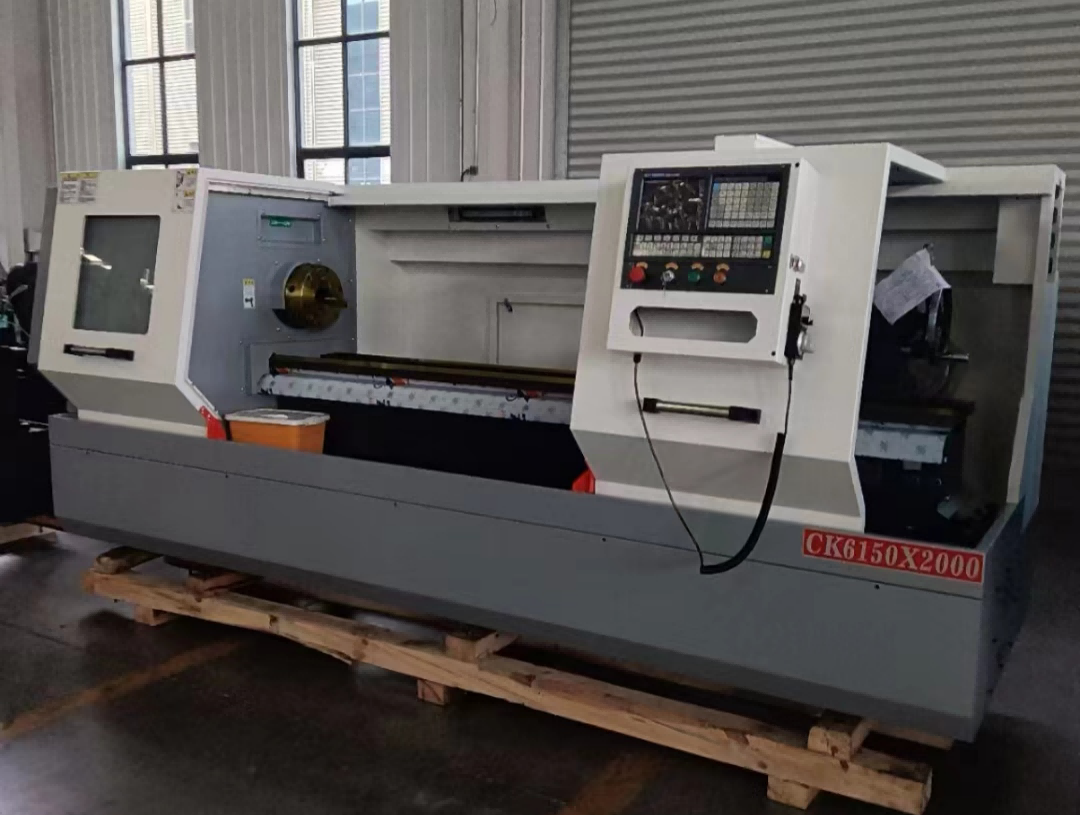

CNC Lathe CK6150X2000
$14900
Main functions: *THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED. *GEARS PRECISELY GROUND TO REDUCE NOISE. *SPINDLE BORE 82MM. *MORE KINDS OF APPEARANCE AND CONTROL SYSTEM CAN BE CHOSEN. *DRIVEN TOOL HOLDER, SERVO MOTOR, TRUSS MANIPULATOR AND MORE OPTIONAL DESIGN FOR MORE AUTOMATIC TURNING NEEDS.
| Item | Unit | CK6150X2000 | |
| Capacity | Swing over bed | mm | Φ500 |
| Swing over cross slide | mm | Φ270 | |
| Max turning diameter | mm | Φ500 | |
| Max. Workpiece length(between center） | mm | 2000 | |
| Max. Support weight | T | 1 | |
| Guideway width | mm | 400 | |
| Spindle | Spindle nose type | C8 | |
| Spindle through hole | mm | Φ82 | |
| Spindle bore | mm | Φ90/MT5 | |
| Spindle speed steps | VF. 3 steps | ||
| Spindle speed range | r/min | 80-1500 | |
| 3 jaw chuck | mm | Φ250 3-jaw manual | |
| Tailstock | Tailstock quill diameter | mm | Φ75 |
| Tailstock quill travel | mm | 150 | |
| Tailstock taper | - | MT5 | |
| Feed | X axis travel | mm | 270 |
| Y axis travel | mm | 1750 | |
| Rapid traverse of X axis | mm/min | 4000 | |
| Rapid traverse of Z axis | mm/min | 6000 | |
| Turret | Turret | NC turret 4 position | |
| Tool shank size | mm | 25×25 | |
| Motor | Main spindle motor | Kw | 7.5 |
| Coolant pump motor | Kw | 0.25 | |
| Weight and size | Net weight | kg | 3400 |
| Size (LxWxH) | mm | 3700×1600×1600 | |
