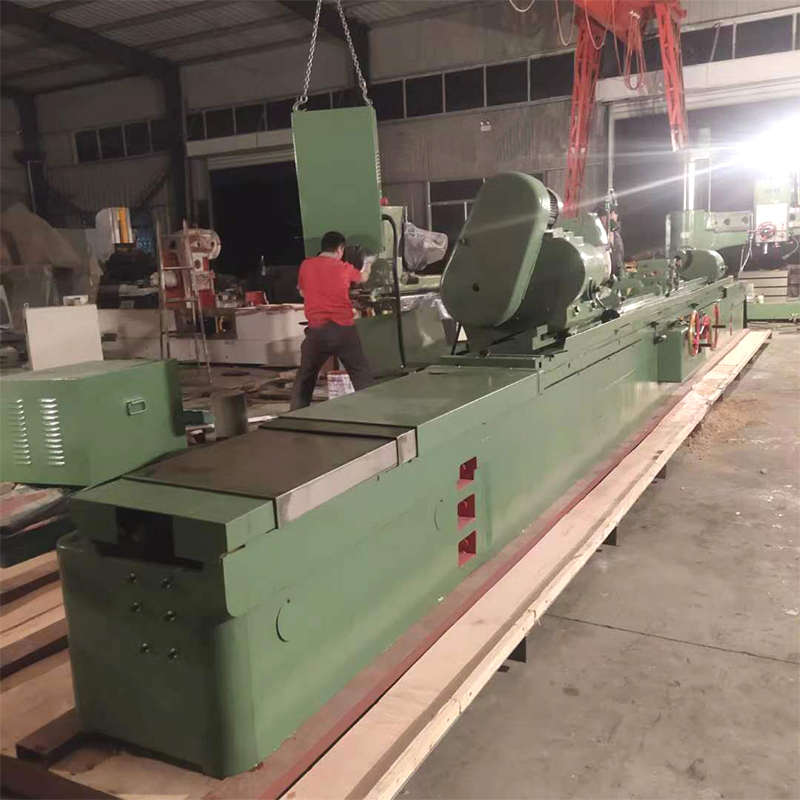

Heavy duty cylindrical grinding machine M1395X3000
$62000
1.The grinding wheel spindle bearing adopts tapered molding oil wedge dynamic pressure bearing, the grinding wheel spindle still has high bearing rigidity at low speed.
2.The grinding wheel frame guideway adopts cross roller rigid guideway and the semi-automatic feeding mechanism is realized by rotary cylinder.
3.The tailstock axis system is characterized by gapless rigidity, and the electrical box, hydraulic box and cooling box are separated from the machine.
4.Rich grinding indicator and coolant filter.
5. The headstock speed can be equipped with optional AC frequency conversion stepless speed regulation according to the user's requirements.
| Model | M1395X3000 |
| Dia. Ground (OD) | Φ25-950mm |
| Max. Length ground (OD) | 3000mm |
| Distance between centers | 3000mm |
| Center height | 500 mm |
| Max. Weight of workpiece | 3T (with centers)6T（with support） |
| Steady rest support diameter | Φ80-500mm |
| Max Grinding length when using tailstock dresser dressing wheel | 3750mm |
| Wheel size | 600-750*50-75*305mm |
| Workpiece speed | 890r/min |
| Grinding wheel linear speed | 35m/sec |
| Machine size | 11240*2600*1700mm |
| Wheelhead rapid advance and retreat | 100mm |
| Workhead spindle speed | 4 step adjustable speed (stepless --optional) |
| Rated power of grinding wheel holder motor | 15kw-18kw |
| Rated power of workhead motor | 4kw-5.5kw |
| Total motor power | 20kw |
| Net weight | 13000kg |
